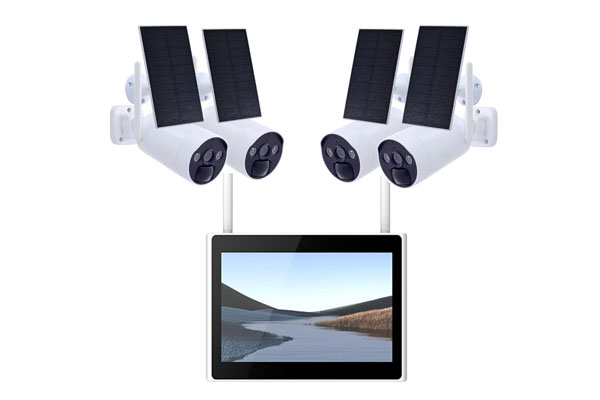

IPC-Kit23W-Wifi Wireless NVR Kit

 Tip: Click on the image to enlarge
WiFi NVR Main Specification
Display 10 inch High Definition LCD Screen
Video compression H.264 & H.265+
Video input (IP) 4CH*4MP
resolution 4MP
Audio compression G.711A
Motion detection Support
Recording mode Manual>Alarm>Dynamic Detection>Timing
Search mode Search by Time/Calendar/Event/Channel
Record storage HDD,Network
Backup mode Network backup, USB hard disk, USB burner, SATA burner
Video output 1CH VGA, 1CH HDMI (2K) output
Network interface 1*RJ45 10M/100M Adaptive Ethernet port + 8CH WiFi
USB interface 2*USB2.0 ports
HDD 1* SATA (Max 6TB )
Power supply DC12V/3A
Work environment Temperature:0℃-+55℃ , Humidity:10%-90%RH

WiFi IP Camera Main Specification
Resolution 4MP (2560x1440, 16:9 high definition)
Video compression H.264 & H.265+
Lens 3.6mm (2.8mm is optional)
Dual stream Main stream 2560x1440@15fps, Sub stream 640x360@15fps
Low illumination Color: 0.1 Lux; B/W: 0.01 Lux
Camera LED Dual Light LED * 2pcs
Infrared distance 15M
Day&night Full Color & Infrared Night Vision switched Auto
Audio Two-way Audio (built-in Microphone and Speaker)
Wireless standard Wi-Fi 2.4G(IEEE802.11b/g/n)
Interface 1 RJ45 10M / 100M adaptive Ethernet port
Battery Built-in 2pcs chargeable lithium battery 9000mAH
Power supply DC5V/1A or or 4.5V ~ 7.5Vsolar panel
Solar panel 1.6W/6.5V with TypeC line
Power consumption ≤6W
Waterproof level IP65
