JY-B60W60AH/JY-B60W40AH 4G Wireless IP Solar Energy Security System

 Tip: Click on the image to enlarge

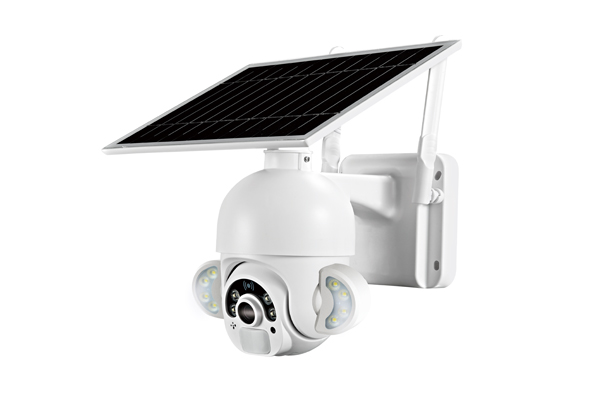

1>2.0MP 4G IR 2 LED waterproof outdoor real time video streaming solar CCTV camera with lithium ion battery

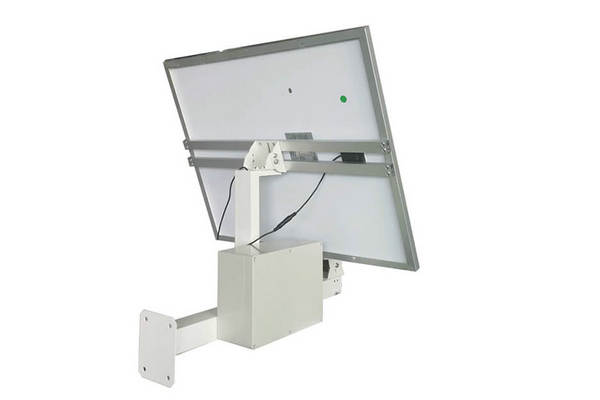

3G/4G Mobile CCTV launches the latest edition of solar powered CCTV camera technology for remote surveillance of sites without power. The camera comes with a battery that is attached to the mounting bracket; which also supports the solar panel and camera enabling the unit to be attached to a pole or wall on site. The solar panel charges the battery via a water-tight connector that enables quick assembly on site and therefore does not need a lot of cabling.

2>The kit includes the 2MP CCTV camera, solar panel and rechargeable lithium ion battery, but does not include the data SIM card that requires a 4G data contract. This camera has 2 IR LED illuminators and ofers night vision capability of 20-60 meters.
3>It's a real 4G network camera, supports both 4G mobile video phone monitoring and 4G traffic way Internet monitoring. It supports the WCDMA, TD-SCDMA and EVDO standards. The system provides the internet video surveillance software package that includes the windows PC version camera centralized control software, Android Phone/Tablet version client application, iPhone / iPad version client application and Flash-based camera centralized control web application.
4>It supports maximum 128GB internal TF card storage. It supports 24-hours video recording, scheduled video recording, manual video recording, alarm video recording, video record searching, video record preview and video record download. The video record is stored as the standard AVI file.
5>Currently offering the camera with two options of solar panel and battery configurations depending on day light hours at the installation site.
50W solar panel with 20AH lithium battery offers 2 rainy days of continuous power

Further detailed technical information is available on request.

Model No.

JY-B60W60AH/JY-B60W40AH
4G Support Network 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
Support Band B1/B3/B7/B20/B38/B39/B40/B41/B26
Support Band of frequencies FDD LTE Band7 / Band3/BAND1/BAND8
TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz) Band41 (2496-2690MHz)
WCDMA/1900/2100/2600MHz
TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)
EDGE/GPRS/850/900/1800/1900MHz
UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz
Network Speed FDD-LTE/TD-LTE (4G) :150MBPS/50MBPS
WCDMA (3G): 21MBPS/5.76MBPS
TD-SCDMA (3G): 2.8MBPS/2.2MBPS
Video Resolution 2.0MP 1920*1080P@30/25/fps
Video streaming HD(1920*1080P),VGA(640*360),QVGA(320*180)
Compression standard H.264
IR-Cut Built-in IR Cut.No color deviation indoor and outdoor
Lens Mount 2.8-12mm Varifocal Lens
Image Frame Rate 30fps maxmium,downward adjustable
Night Vision 4Pcs array LEDs,IP distance up to 15 meters
Waterproof Product Type Metal Gun type/Waterproof outdoor use
Waterproof IP66
Network Ethernet RJ-45 Ethernet
Wireless IEEE 802.11 b/g/n,Security supports WEP,WPA&WPA2 Encryption
Onvif Protocol Supports NVR real time monitoring,recording and playback
Alarm Motion Detection Yes
Alarm Setting Supports Email,Phone push
Alarm recording Yes
Storage MicroSD Card Supports up to 128G microSD card for recording and playback
Recording mode Manual Record,Alarm Record,Timing Record
View the video Support Remote video playback
System For Phone Support IOS and Android system smart phones or tablet PCs
For Windows PC CMS suports1-,4-,6-,8-,9,16-Channel IP Camera centralized monitor,record and playback on Windows PC
Weight Package weight 750g
Accessories Adaptor,User Manual,Bracket,Screw
