| image size | 1/2.33" |
| mount | M12*0.5 |
| focal length | 1.27mm |
| Resolution | 5 megapixel |
| Aperture | F2.5 |
| D.H.V | 185°*185°*185° |
| Mount Type | M12*0.5 (S-Mount) |
| Iris | Fixed |
| Feature | fisheye |
| Sensor | CCD/CMOS |
| Max Image Circle | Φ4.0mm |
| Back Focal Length: | 3.00mm |
| (F.O.V.)(D/H/V): | 185°/185°/185° |
| Optical Length: | 33.27mm |
| Operating Temperture: | -40℃~80℃ |
| Optical Distortion: | -3.78% |

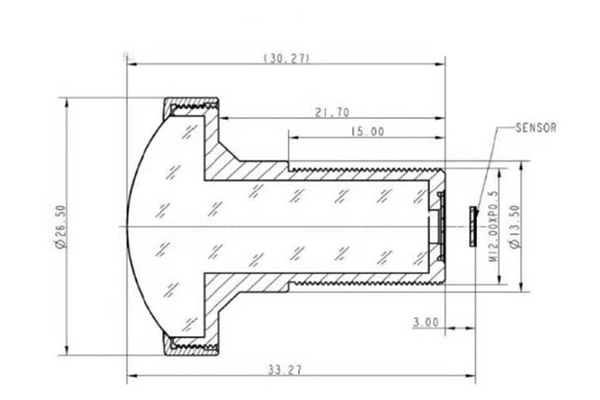

| Dimension: | Φ26.5x30.27mm |
| Features: | IR Night vision, Multilayer Coating |
| Image Sensor Format: | 2592(H)x1944(V) |
