| Lens Type | Manual |
| Model Number | JY-M12-2.1BD-3MP-1/2.7 |
| Type | Fixed Focus Lens |
| Aperture Range | F2.0 |
| Focal Length | 2.1mm |
| Focal length | 2.1mm |
| Aperture | F2.0 |
| Mount | M12*0.5 |
| Image sensor | 1/2.7 |
| D.H.V | 160° |
| Resolution | 3MP |
| M.O.D. | 0.2m |
| TTL | 14.75 |
| BFL | 5.3mm |
| MBL | 5.15mm |

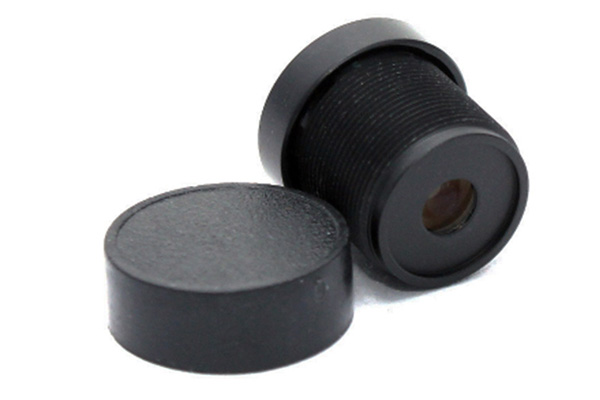

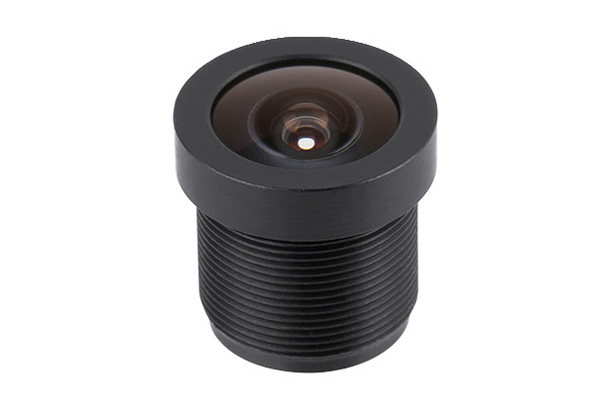

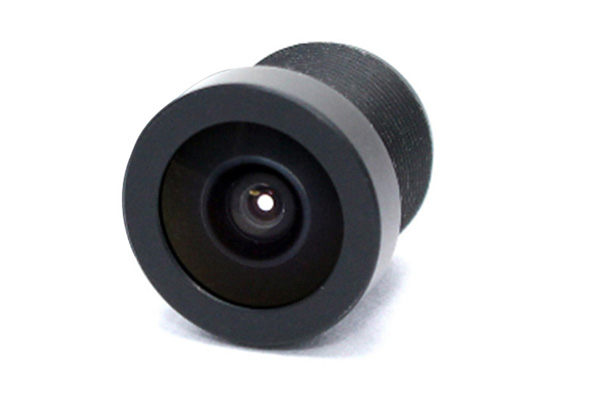

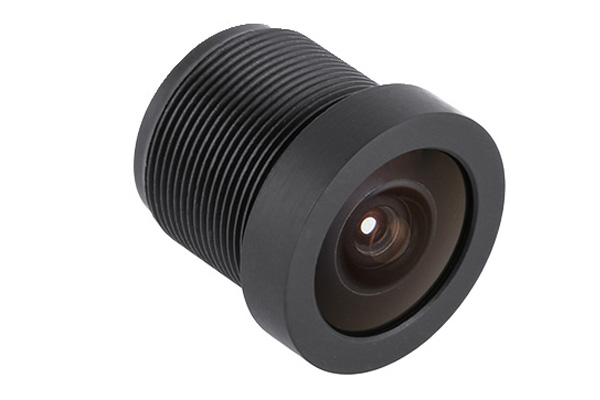

JY-M12-2.1BD-3MP-1/2.7 Board lens
Tip: Click on the image to enlarge
