| Aperture Range | F2.0 |
| Focal Length | 2.8mm |
| Resolution | 3 Megapixel |
| Format | 1/2.5" |
| Focal length | 2.8mm |
| Aperture | F2.0 |
| Mount | M12x0.5 |
| M.O.D. | 0.2m |
| TTL | 22.3 |
| BFL | 6.9mm |
| Weight | 6.8g |
| IR Correction | Yes |

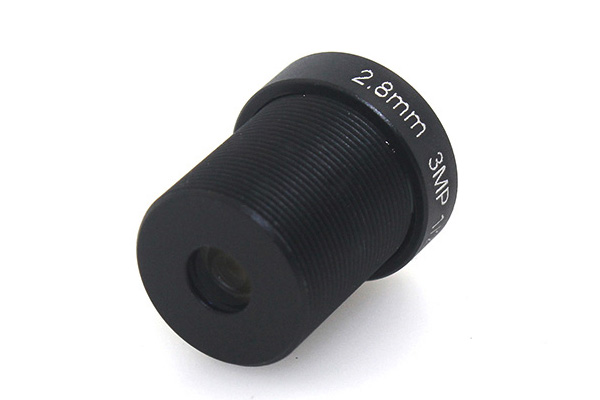

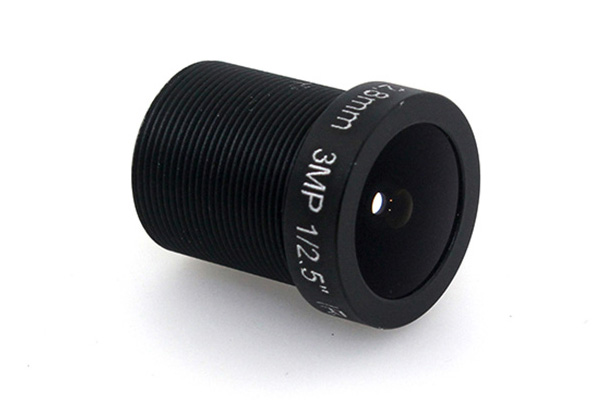

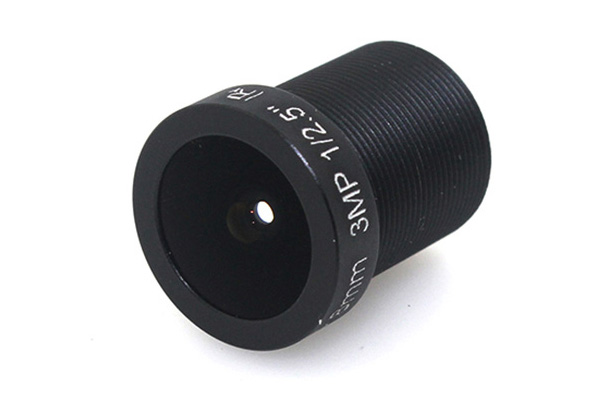

JY-M12-2.8BD-3MP-1/2.5 Board lens
Tip: Click on the image to enlarge
