| Aperture Range | F2.0 |
| Focal Length | 4mm |
| Resolution | 5 Megapixel |
| Image format | 1/2.5" |
| Focal length | 4mm |
| Aperture | F1:2.0 |
| Mount | M12*0.5 |
| M.O.D. | 0.2m |
| Weight | 8g |
| BFL | 5.40mm |
| Total Track Length | 21.7mm |
| Iris | Fixed |

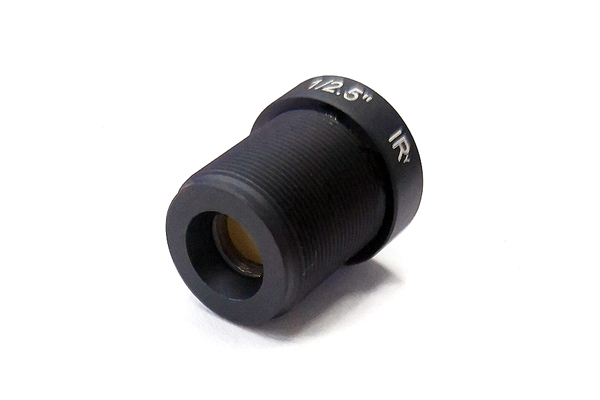

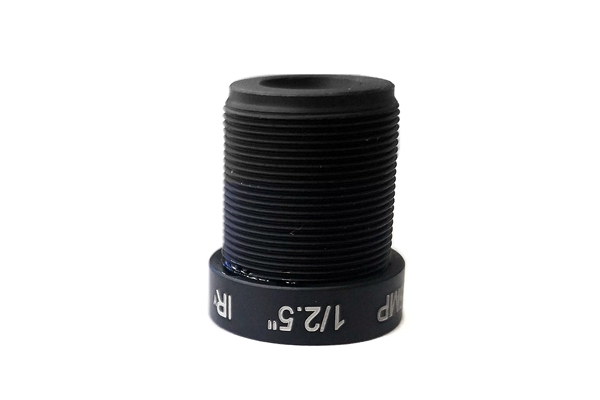

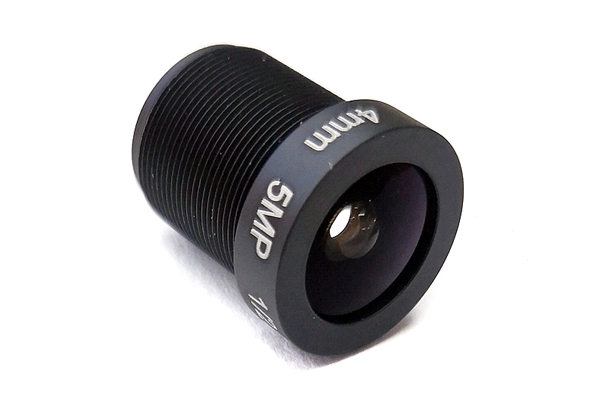

JY-M12-4.0BD-5MP Board lens
