| Pixel | 5.0Megapixel | |
| ImageFormat | 1/2.5" | |
| FocalLength | 4mm | |
| Aperture | F2.0 | |
| Mount | CS | |
| FieldAngle | 1/2.5" | 59°×45°×32.5° |
| D×H×V(°) | 1/2.7" | 52.5°×41.5°×30.3° |
| 1/3" | 47°×36.6°×27° | |
| OpticalDistoration | -18.5%(Max) | |
| M.O.D | 0.3m | |
| FlangBFL | 12.5mm | |
| BFL | 7.7mm | |
| MBF | 6.5mm | |
| IRcorrection | Yes | |

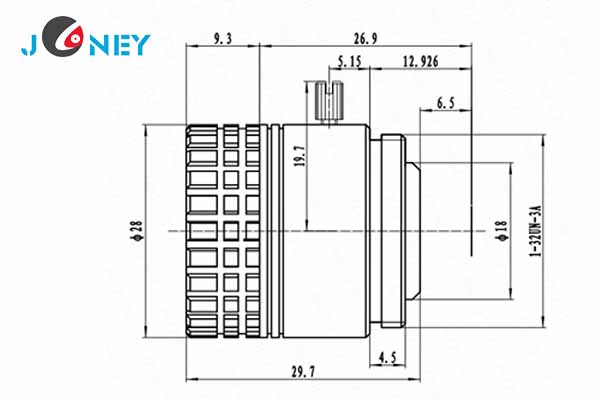

| Dimension | Φ28×31.2mm | |
| Weight | 40g | |
| Operation | Iris | Fixed |
| Focus | / | |
| Zoom | / | |
| Operatingtemperature | -20C+60C | |
| Sizetolerance(mm) | 10-30±0.10 | |
| Angletolerance | ±2° | |
