| Model Number | JY-M12-1.0FY-5MP-1/3.2 |

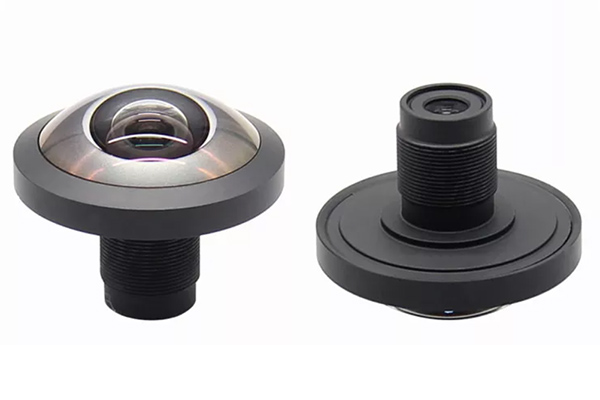

| Product name | Fisheye lens |
| image size | 1/3.2" |
| mount | M12*0.5 |
| focal length | 1.0mm |
| Resolution | 5 megapixel |
| Aperture | F2.2 |
| D.H.V | 220°*220°*220° |
| Mount Type | M12*0.5 (S-Mount) |
| Iris | Fixed |
| Feature | fisheye/panoramic lens |
| Optical Distortion | -97.5% |
| M.O.D. | 0.15m |

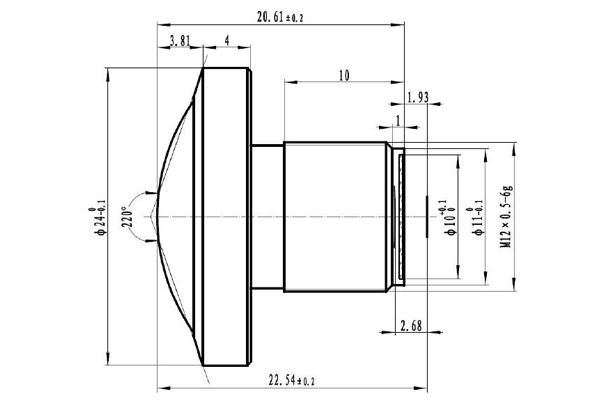

| Dimension | Φ24×20.61mm |
| BFL | 2.68mm |
| MBF | 1.93mm |
| IR Correction | No |
| Operating temperature | -30℃～+80℃ |
