Features
2.0 megapixel low power battery 4G IP camera, maximum resolution 1920*1080;
Built-in PIR, detection range 10 meters;

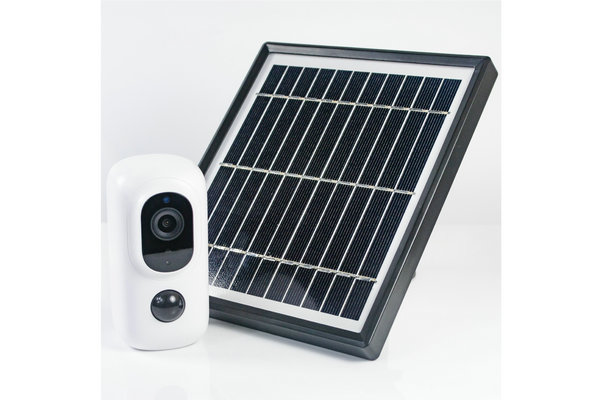

Built-in 5200mAh battery, can work for 30 days without power supply, can be matched with solar panel to achieve sustainable power supply with clean energy;
Support 4G;
Support up to 64G TF card storage, support cloud storage;
Built-in MIC and speakers, support two way audio;
Waterproof level IP65;
3.6mm lens;
6pcs infrared LEDs, night vision distance 10m;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Specifications
| Model | IPC-Q5H-4G | |
| Video | Sensor | 2.0 megapixel 1/2.9" SC2232H CMOS |
| Video resolution | Main stream: 1920x1080@15fps Sub stream: 640x360@25fps |
|
| Video compression | H.264 / H.265 | |
| Lens | 3.6mm F2.0 lens | |
| View angle | 92° | |
| Night vision | 6pcs infrared LEDs, night vision distance 10m | |
| Audio | Audio compression | G.726/AAC |
| Audio code rate | 8Kbps, 16bit | |
| Audio input/output | Built-in MIC and speakers, support two way audio | |
| Alarm | PIR detecting alarm | 10 meter PIR detection range. |
| Alarm linkage | Alarm record pictures and videos to Micro SD card Alarm mobile phone message push |
|
| 4G | 4G standard | FDD-LTE/TDD-LTE |
| 4G frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz) | |
| Interface type | Nano SIM card, Plug and play, no need to set | |
| Storage | Micro SD card | Support up to 64G micro SD card |
| Recording mode | PIR alarm recording | |
| Video playback | Support APP remote play and download the video | |
| low power | Solar panel | 3W multi-silicon solar panel(optional) |
| battery | Built-in 5200mAh battery | |
| Work mode | Low power mode, always working mode | |
| Wake up | PIR alarm wake up, remote manual wake up | |
| Sleep | When the alarm end or remote connection disconnected | |
| General specification | Power | DC5V 1A |
| Power consumption | Sleeping: 0.03W, working: 1.3W@days/2.5W@night | |
| Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～80%, non-condensing |
|
| Waterproof level | IP65 | |
| Product size | 50mm×46mm×92mm(L×W×H) | |
| Product weight | 0.2kg | |
| Package size | 171mm×136mm×62mm(L×W×H) | |
| Package weight | 0.5kg | |
| Reset button | Support | |
