Product Introduction:

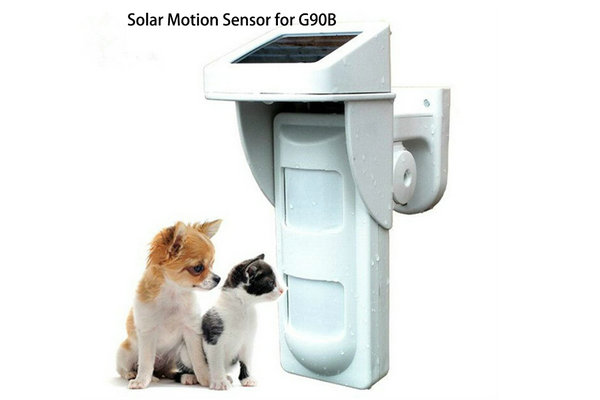

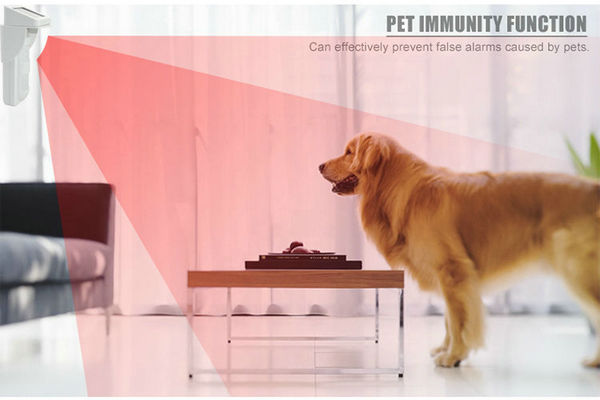

This wireless outdoor solar-powered PIR detector can be used for villa, farm, port, factory protection. It is with 2262 or 1527 protocol, coreless for installation, can match more than 80% wireless control systems in the market and 100% wired control panels with our receiver. Battery life expentance is 45 days even no sunshine charge or DC/AC power. Its pet immunity function makes it free from small animals.
Specification:
1. Independent dual element PIR detection technology, adopts fuzzy logic digital processing technology
2. Unique full-range temperature compensation technology
3. Intelligent solar recharge technology, IP65 water proof, pet immunity lens for option!
4. Pure wireless transmitting structure, convenient installation
5. Super province electricity design, completely solve the power supply shortage problem
6. Built-in expansion mouth, with a variety of wireless control panel compatible, connectable to all wired control panels through our REC-4CH receiver
7. Pulse count optional
Parameter:
| Power Supply | 1.2V*3 AAA Ni-MH chargeable battery (Recommended Panasonic or Sanyo battery,single battery capacitor>800mA) |
| Operation power | Static:100uA; alarm:30mA |
| Installation height | 1.5m-2.4m |
| Alarm lasting time | 3s |
| Anti RFI-EMI | 0.1-500MHz/3Vm |
| Anti white light | >10000Lux |
| Operation temperature | -20~+55oC |
| Operation humidity | 95%RH |
| Detection speed | 0.2m/s to 3.5m/s |
| Tranasmission frequency | 433 MHz |
| Tranasmission distance | 200m (open air,no interference) |
| Low battery indication | When the voltage is below 3.3V,detector will send out alarm signal automatically |
| Temperature compensation | Hyperbola compensation structure |
