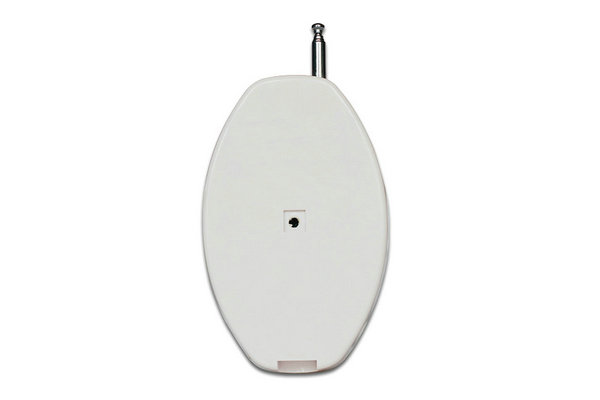

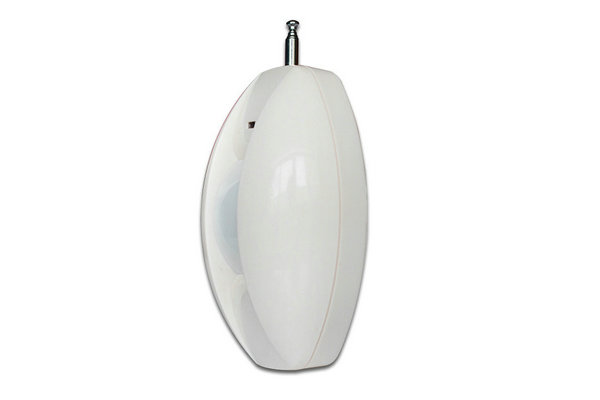

AWL-800WF/AWL-823W Wireless Curtain PIR Detector

 Tip: Click on the image to enlarge

  Features:

  Alarm indicator:Red led

  Low battery indicator:Yellow led

  Sensor:Dual element infrared sensor

  Digital circuit,using microprocessor

  Two-way digital temperature compensation

  Super anti false positives

  SMT manufacturing process,anti RFI,EMI interference

  The pulse count adjustable

  The detection sensitivity adjustable

  ABS plastic material

  Technical Specification

Model AWL-800WF AWL-823W
ModelType Wireless Curtain Pet Immune PIR Detector Wireless Curtain Direction Identify PIR Detector
PowerSupply DC3V(2A AAlkaline batteries)
DetectionDistance 9m
DetectionAngle 15°
Transmittingdistance ≤150m(open area) ≤150m(open area)
AntiRFinterference 10MHz-1GHz20V/m
Installationheight 1.7to2.5m(2.2mis proposed)
Installationmode Wall mounted
Transmittingfrequency 315MHz/433MHz
Anti-petLevel 10kg /
Alarmdirection / Direction Identify
Selfcheckingtime 30s 60s
ProgrammerCode 1527/2264
StandbyCurrent ≤25uA ≤12uA
AlarmCurrent ≤10mA ≤10mA
OperatingTemperature -10ºC~+50ºC
RelativeHumidity ≤95%(non-condensing)
Alarmdelay 5 seconds or 5 minutes optional
Unitsize 110*70*40mm
