Features
>Alarm indicator: Red led;
>Two way power supply;
>Low battery indicator:Blueled;
>Sensor: Dual element infrared sensor;
>Digital circuit, using microprocessor;
>Two-way digital temperature compensation;
>Super anti false positives;
>SMT manufacturing process, anti RFI, EMI interference;
>The pulse countadjustable;
>ABSplasticmaterial.
Technical Specifications
|
Model |
AWL-803W |
|
Model Type |
Wireless PIR detector |
|
Power Supply |

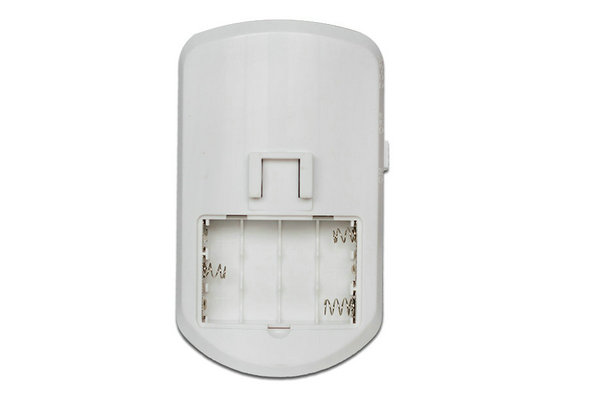

DC5V adapter or 3 AAA batteries |
|
Detection Distance |
8m |
|
Detection Angle |
110° |
|
Transmittingdistance |
≤150m ( open area) |
|
Anti RF interference |
10MHz-1GHz 20V/m |
|
Installation height |
1.7 to 2.5m(2.2m is proposed) |
|
Installation mode |
Wall mounted |
|
Transmittingfrequency |
315MHz/433MHz |
|
Programmer Code |
1527/2264 |
|
Standby Current |
≤50uA |
|
Alarm Current |
≤20mA |
|
Operating Temperature |
-10℃~ +55℃ |
|
Relative Humidity |
≤80% (non-condensing) |
|
Unit size |
67*50*106mm |
