VD-613IDF 7 inch monitor Mobile Password Fingerprint unlock wifi video door bell

 Tip: Click on the image to enlarge

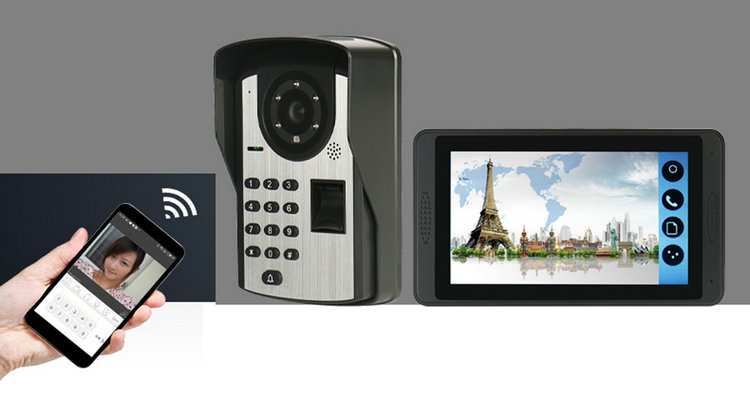

VD-613IDF 7 inch monitor Mobile Password Fingerprint unlock  wifi video door bell  Mobile Password Fingerprint unlock

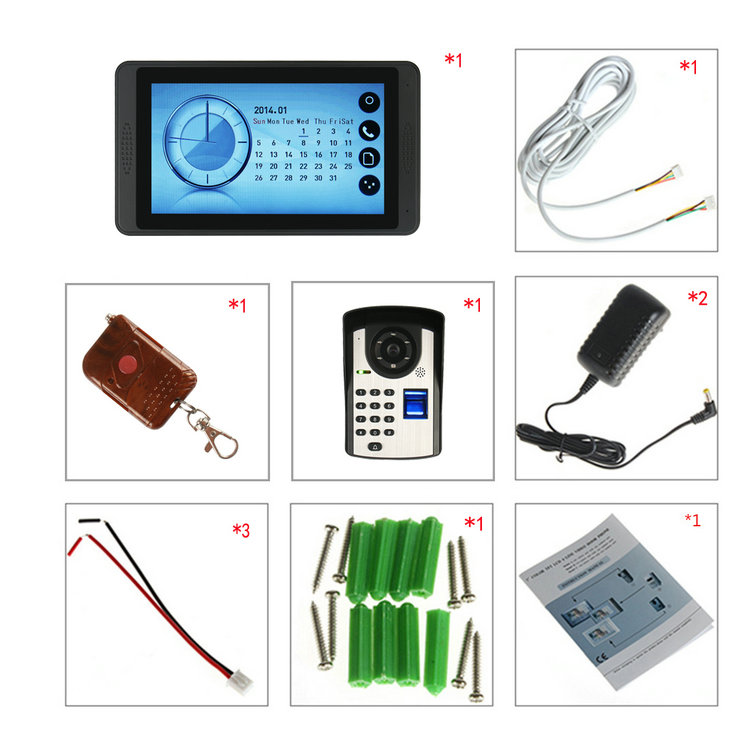

VD-613IDF 7 inch monitor Mobile Password Fingerprint unlock  wifi video door bell packing list

  Products Introduction:

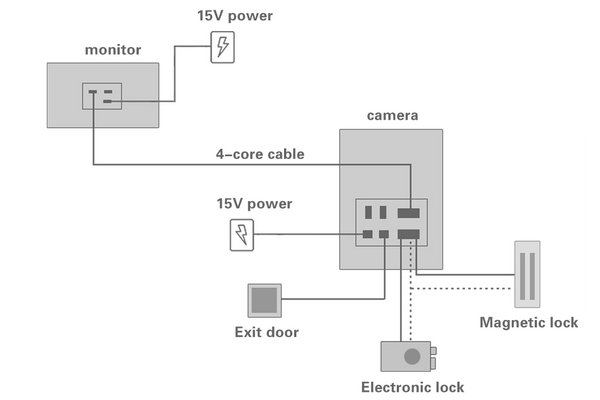

  Easy installation by yourself with the adapter and cable we provided in this kit,outdoor unit can connect to indoor monitor by wired 4P cable.When indoor monitor connected to your wireless wifi router,you can connect mobile phone to indoor monitor,then mobile phone also can record video or open the door etc.Widely used in villas, apartments, houses, hotels, offices, public buildings and so on.

  1.Indoor monitor use the multi-point capacitance touch screen,adopt to Android System,steady and easy to operate.

  2.7 inch High definition digital LCD monitor,with take picture,visitor records and calendar function.

  3.Indoor monitor can take picture by manually or automatically,max to support 64G TF card.

  4.Indoor monitor with monitor,intercom,unlock,hands-free and Don't disturb function.

  5.Volume, brightness & colorful adjustable.

  6.The indoor monitor can support to connect 8 mobile phone APP user,Support IOS/Android system mobile phone , then the mobile phone can view and unlock.

  7.Indoor monitor can connect to wireless wifi router.

  8.Mobile APP with monitor,intercom, take picture,video record by manually and unlock functions.

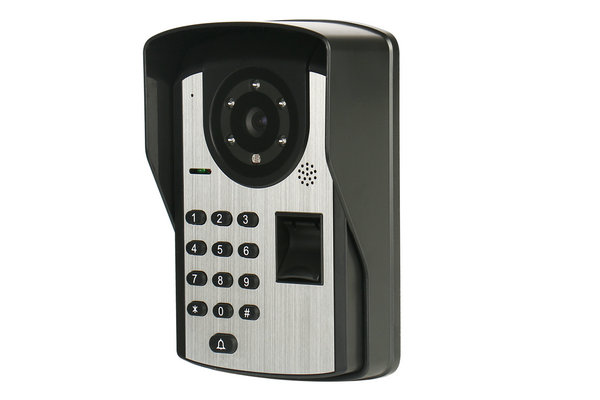

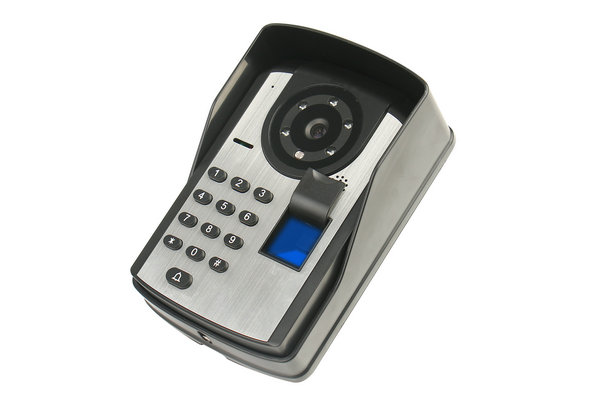

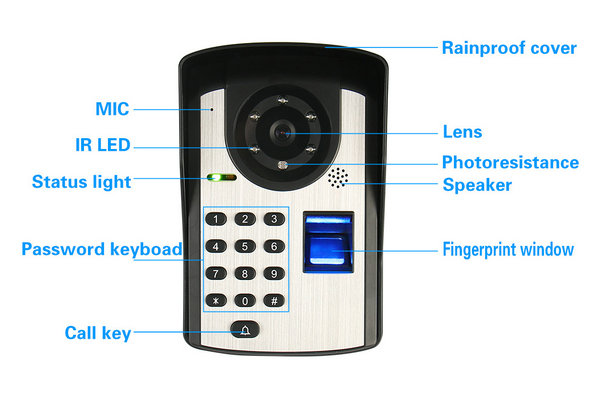

  Outdoor camera Technical Data

  Power supply 15V DC 2A

  Ambient temperature -20°C to + 55°C

  Material ABS + metal drawing board


  3.6mm SHARP-CCD camera (1000TV line)

  92°viewing angle

  Photosensitivity 0.05 lux

  Night vision Yes, (5LED diodes (automatic connection) Three unlocking methods, fingerprint + password + remote unlock

  Storage capacity 1000 fingerprints 1 set of passwords, 8 remote controls.

  Scanner full-size scanner, blue scanner illumination

  Scanner resolution 500dpi

  Protection class IP55 (dustproof/protection against water jets)

  Installation on-wall

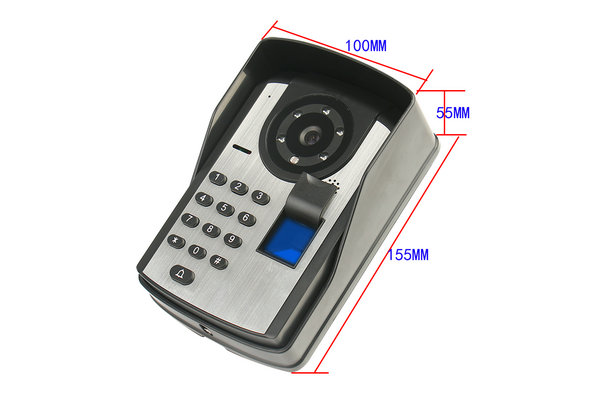

  Dimensions 155 x 100 x 55 mm

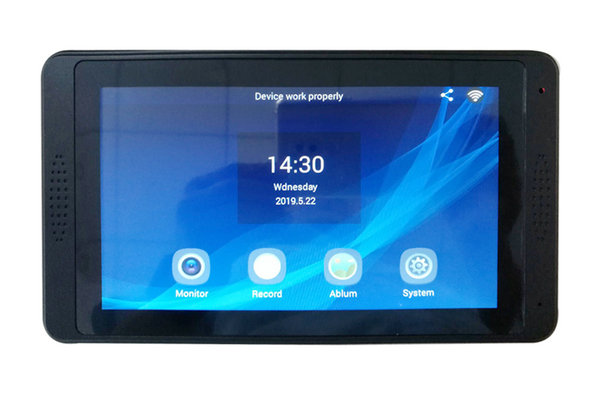

  Display:7" TFT LCD(16:9)

  Resolution: 1024(H)X600(V)

  Unlock: Support mobile phone and tablet to unlock

  Additional memory: Support additional TF card (64GB max.)

  Touch : Yes

  Wifi: Yes

  Power supply: DC15V2A

  Installation: Surface mount


  Camera sensor: 1/3 inch CMOS

  View angle: 92°

  Definition: 1000TVL

  LEDs for night:IR LEDs (180°)

  Anti-oxidation aluminium alloy panel

  Power consumption: 2W Max

  waterproof level:IP55

  Installation: Surface /flush mount


  1*Indoor Monitor

  1*Outdoor Unit

  1*15V/2A Power Supply

  1*4-core terminal wire (5m)

  1*unlock terminal wire


  1*Mounting plate
