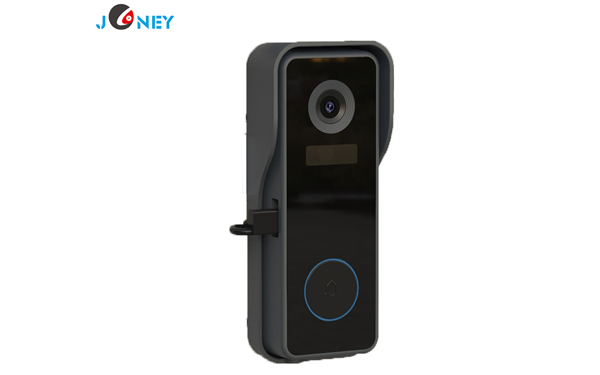

| Model Number | JY-J7W |
| Resolution | 3MP |
| Network | wifi |
| Type | Video Door phone |
| Pixel | 3.0 Mega Pixels |
| View angle | 140° |
| Compressed output bit rate | 32Kbps~2Mbps |
| Audio | Full duplex 2-way audio |
| Storage | Support SD card (Max. 128G),Cloud storage |
| Wifi | IEEE802.11b/g/n |
| Optional accessories | Wireless Chime |
| Battery capacity | 4500mAh |
| Water proof | IP65 |
| Size(mm) | 56.3 * 35 * 134 |
| Weight (g) | 168 |
| Working temperature and humidity |
-20℃~50℃, humidity less than 90% (without condensation) |
| Image setting | Support FHD/SD |
| Sensor type | 1/2.9" CMOS |
| App | CloudEdge |
| Chime RF frequency | 433MHz ~868MHz |
| Wireless chime input1 | Micro-USB (DC 5V 1A) |
| Wireless chime input2 | AA battery *3 |
| Chime Size（mm） | 75.5 × 75 × 28mm |
| Chime weight (g) | 75（net weight）+70（3 units of AA battery） |
| Certificates | CE/ROHS/FCC/UKCA/MSDS |
