JY-F1900-E 20" 4K CCTV monitor

 Tip: Click on the image to enlarge

  20" HD monitor

  1. Access resolution: 3840×2160 (4K), 2560×1440 (2K), 1920×1080 and below;

  2. Screen ratio: 16:10; Viewable area: 408.24×255.15mm; Brightness: 300cd/m²;

  3. Screen interface: LVDS, the best resolution: 1920×1080, 1440×900;

  4. Contrast ratio: 3000:1; viewing angle: wide viewing angle; response time: 5ms;

  5. Interface: 1*HDMI, 1*VGA, 1*USB, RCA*2, accessories: standard speaker, HDMI cable

  6. Single package size: 485×105×340mm; 5 sets/carton: 555×500×360mm

  7. Standard V-shaped base, support wall hanging and hoisting (self-purchased bracket, hole distance: 75×75mm)

Product Type Professional Monitor
Product model JY-F1900-E
Screen size 19"
Screen Type LED
Screen ratio 16:10
Brightness 300nit
Contrast 3000:1
Response time 5 ms
Visible area 408.24*255.15 mm
Viewing angle 160 degrees / 170 degrees
Display color 16.7M
Definition 1920*1080
Control method Panel
Input port HDMI, VGA, RCA video and audio input
Audio output with stereo speakers
Headphone jack audio input
Power supply 12V2.6A
Total power 20W
Shell Flame Retardant Plastic

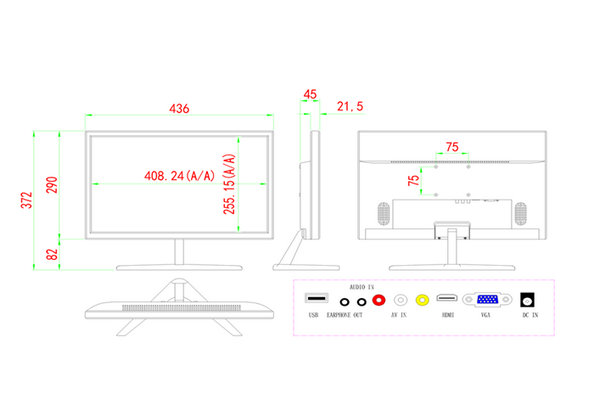

Product outer size 436*290 does not include foot height (foot height 82mm)
Installation method base, wall mount
Product weight 2.5kg
Packing size 485*105*340mm
Gross weight 3.4kg"
Outer packaging size five in one package 555*500*360mm
Weight 18kg
Working environment temperature the most suitable for 20 degrees
Working environment humidity 10%-90%RH
Storage temperature -20 degrees - 60 degrees
