JY-F2200-EX 22" 4K CCTV monitor

 Tip: Click on the image to enlarge

  22" HD monitor

  1. Access resolution: 3840×2160 (4K), 2560×1440 (2K), 1920×1080 and below;

  2. Screen ratio: 16:10; Viewable area: 473.76×296.1mm; Brightness: 300cd/m²;

  3. Screen interface: LVDS, the best resolution: 1920×1080, 1680×1050;

  4. Contrast ratio: 3000:1; viewing angle: wide viewing angle; response time: 5ms;

  5. Interface: 1*HDMI, 1*VGA, 1*USB, RCA*2; standard configuration: speaker, HDMI cable, remote control

  6. Single package size: 551×103×385mm; outer carton 5 sets/carton: 570×545×405mm

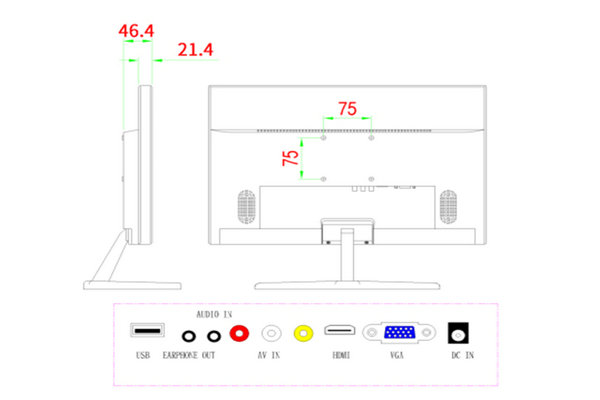

  7. Standard V-shaped base, support wall hanging and hoisting (self-purchased bracket, hole distance: 75×75mm)

Product Type Professional Monitor
Product model JY-F2200-EX
Screen size 22"
Screen Type LED
Screen ratio 16:10
Brightness 300nit
Contrast ratio 3000:1
Response time 5 ms
Visible area 473.76*296.1 mm
Viewing angle 160 degrees / 170 degrees
Display color 16.7M
Definition 1920*1080
Control method Panel
Input port HDMI, VGA, RCA video and audio input
Audio output with stereo speakers
Headphone jack audio input
Power supply 12V3A
Total power 25W
Shell flame retardant plastic

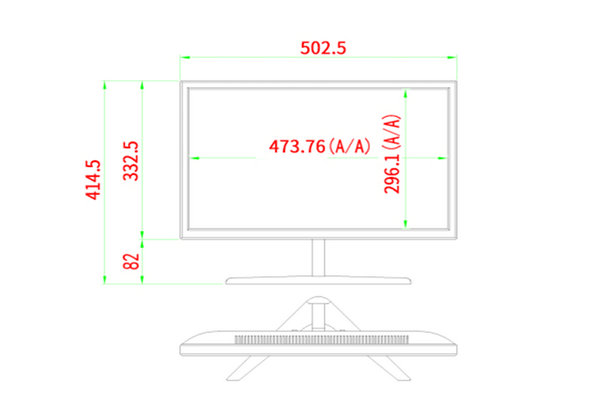

Product dimensions 502.5*332.5 excluding foot height (foot height 82mm)
Installation method base, wall mount
Product weight 3kg
Package size 551*103*385mm
Gross weight 3.8kg
Outer packaging size five in one package 570*545*405mm
Weight 24kg
Working environment temperature the most suitable for 20 degrees
Working environment humidity 10%-90%RH
Storage temperature -20 degrees - 60 degrees
