24" HD monitor
1. Access resolution: 3840×2160 (4K), 2560×1440 (2K), 1920×1080 and below;
2. Screen ratio: 16:9; Viewable area: 531.36×270.9mm; Brightness: 250cd/m²;
3. Screen interface: LVDS, best resolution: 3840×2160, 1920×1080;
4. Contrast ratio: 3000:1; viewing angle: wide viewing angle; response time: 5ms;
5. Interface: 1*HDMI, 1*VGA, 1*USB, RCA*2; standard configuration: speaker, HDMI cable, remote control
6. Single package size: 603×103×385mm; outer carton 5 sets/carton: 620×545×405mm

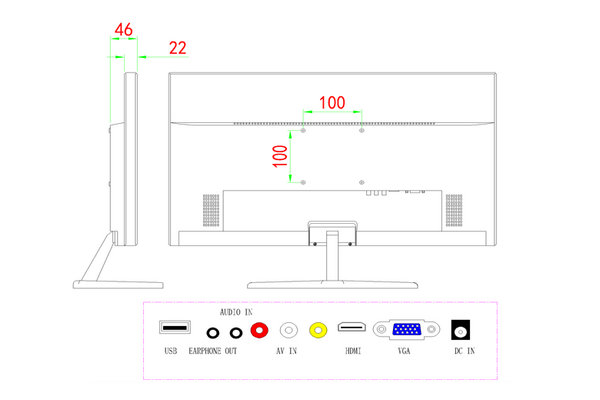

7. Standard V-shaped base, support wall hanging and hoisting (self-purchased bracket, hole distance: 100×100mm)
| Product Type | Professional Monitor |
| Product model | JY-F2400-E |
| Screen size | 23" |
| Screen Type | LED |
| Screen ratio | 16:9 |
| Brightness | 300nit |
| Contrast ratio | 3000:1 |
| Response time | 5 ms |
| Visible area | 531.36*270.9 mm |
| Viewing angle | 160 degrees / 170 degrees |
| Display color | 16.7M |
| Definition | 1920*1080 |
| Control method | Panel |
| Input port | HDMI, VGA, RCA video and audio input |
| Audio output | with stereo speakers |
| Headphone jack | audio input |
| Power supply | 12V5A |
| Total power | 28W |
| Shell | flame retardant plastic |

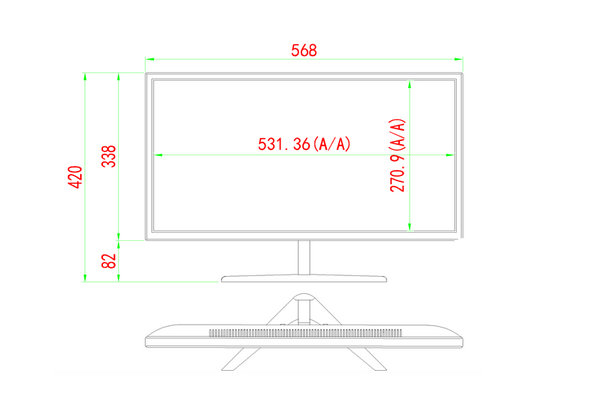

| Product dimensions | 568*338 excluding foot height (foot height 82mm) |
| Installation method | base, wall mount |
| Product weight | 3.2kg |
| Packing size | 603*103*385mm |
| Gross weight | 4kg |
| Outer packaging size | five in one package 620*545*405mm |
| Weight | 24kg |
| Working environment temperature | the most suitable for 20 degrees |
| Working environment humidity | 10%-90%RH |
| Storage temperature | -20 degrees - 60 degrees |
