JY-F3200-E 32" 4K CCTV monitor

 Tip: Click on the image to enlarge

  32" HD monitor

  1. Access resolution: 3840×2160 (4K), 2560×1440 (2K), 1920×1080 and below;

  2. Screen ratio: 16:9; Viewable area: 698.40×392.85mm; Brightness: 500cd/m²;

  3. Screen interface: LVDS, best resolution: 3840×2160, 1920×1080;

  4. Contrast ratio: 3000:1; viewing angle: full viewing angle; response time: 5ms;

  5. Interface: 1*HDMI, 1*VGA, 1*USB, RCA*2; standard configuration: speaker, HDMI cable, remote control

  6. Single package size: 770×110×500mm; Outer carton 4 units/carton: 790×596×525mm

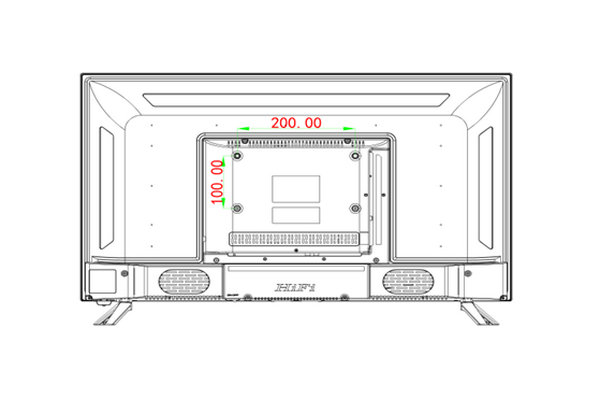

  7. The figure-eight base is standard, which supports wall mounting and hoisting (purchased brackets by yourself, hole distance: 200×100mm)

Product Type Professional Monitor
Product model JY-F3200-E
Screen size 32"
Screen Type LED
Screen ratio 16:9
Brightness 500nit
Contrast ratio 3000:1
Response time 5 ms
Visible area 698.40*392.85mm
Viewing angle 160 degrees / 170 degrees
Display color 16.7M
Definition 1920*1080
Control method Panel
Input port HDMI, VGA, RCA video and audio input
Audio output with stereo speakers
Headphone jack audio input
Power supply AC110-220V 50-60Hz
Total power 55W
Shell flame retardant plastic

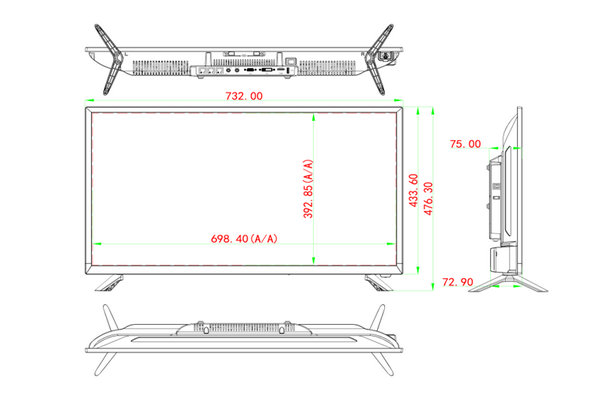

Product dimensions 732*433.6*75 excluding foot height (foot height 37mm)
Installation method base, wall mount
Product weight 5.3kg
Packing size 770*110*500mm
Gross weight 6.5kg
Outer packaging size 4 in one package 790*596*525mm
Weight 26kg
Working environment temperature the most suitable for 20 degrees
Working environment humidity 10%-90%RH
Storage temperature -20 degrees - 60 degrees
