IPC-8Kit4700-POE-8.0MP 8CH H.264/H.265 POE NVR kit

 Tip: Click on the image to enlarge

8CH H.264/H.265 POE NVR kit IPC-8Kit4700-POE-5.0MP

8CH H.264/H.265 POE NVR kit IPC-8Kit4700-POE-5.0MP Use environment

8CH H.264/H.265 POE NVR kit IPC-8Kit4700-POE-5.0MP APP

8CH H.264/H.265 POE NVR kit IPC-8Kit4700-POE-5.0MP  fluent two-way voice

8CH H.264/H.265 POE NVR kit IPC-8Kit4700-POE-5.0MP Features

8CH H.264/H.265 POE NVR kit IPC-8Kit4700-POE-5.0MP Multi-platform

  1.4K 8MP Full HD,H.265 Video Compression;

  2.Power Over Ethernet,POE NVR System with POE IP Camera;

  3.Two-way Audio Camera System;

  4.Motion detection With White Lights on for night color vision,IP66 Weatherproof Outdoor;

  5.All Cameras are built-in Microphone and Speaker, Support Two-way Audio Sound Recording;

  6.Full Color Ultra HD Day & Night Vision,Video With Smart Playback;

  7.Remote View Anywhere Anytime,POE Set,Plug and Play,Easy Setup;

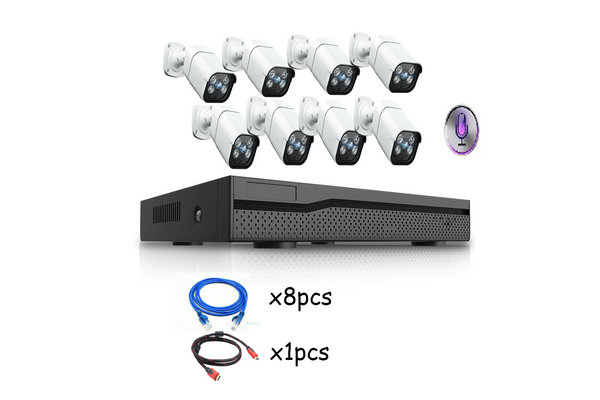

  Packing List

  1 X H.265 8CH 8MP POE NVR Network Video Recorder;

  8 x H.265 HD POE 8MP IP indoor /outdoor IR Day Night vision Bullet weatherproof cameras;

  1 x Power Supply for NVR;

  8 x Power Supply for cameras;

  1 X USB Mouse for NVR;

  1 X Software CD for NVR;

  1 X Remote Control for NVR;

  Hard Disk Optional!!!

Camera
Model IPC-Kit4700-POE-8.0MP/4K
Video Standard H.265/H.264 Double code
Video Resolution Main stream: 3840x2160
1-15fps
Image Quality Brightness setting, Saturation setting, Sharpness setting, Contrast setting, Auto white balance, Manual white balance setting, Backlight compensation setting, Light suppression setting, Auto exposure, 2D/3D noise reduction intensity setting, Fog mode setting, WDR mode Strength setting
Day/Night Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto
AGC/BLC Support
DNR 2D/3D DNR
Other Motion Detection, Privacy Mask, Mirror, Rotate
Audio Optional
Lens 3.6mm, 30m IR
Network Services
Protocol HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P/UPNP
P2P Yes
Web IE , Firefox, etc.
Media CMS, Android, IOS
ONVIF 2.6 compatible
General
Network Port 1-RJ45, 10/100Mbps
Power Supply Support POE 48V 12 VDC ± 10%
Power Consumption < 15 W
Operating Temp. -30℃-(+70)℃, 10%-90%RH
Waterproof level IP66
NVR
Module NVR-JA9008-8P/4K
OS Embedded Linux
Master chip MC6630
Access Bandwidth 64M
Support 1 SATA, 8ch POE port (IEEE 802.3af) Yes
Bidirectional Talk Two-way voice intercom function
CVBS Output 1CH,BNC(1.0Vp-p,75ohms)
HDMI Resolution 1920×1080,
1280×1024,1280×720,1024×768,800×600
Audio Output 1CH,BNC(Line out,2Vpp,300ohms)
IP Resolution Main stream:up to 5632x4224
Sub stream: no more than D1
Synchronous Playback Up to 8CH
Bidirectional Talk Two-way voice intercom function
Motion Detection Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Network Interface 1 RJ45 10M/100M/1000M adaptive Ethernet interface
Weight 3.0 Kg(without HDD)
Power Supply 110V~220V±10% ±10% 47Hz~63Hz
Working Temperature -10℃--+55℃
Working Humidity 10%--90%
Consumption 30W(without HDD)
