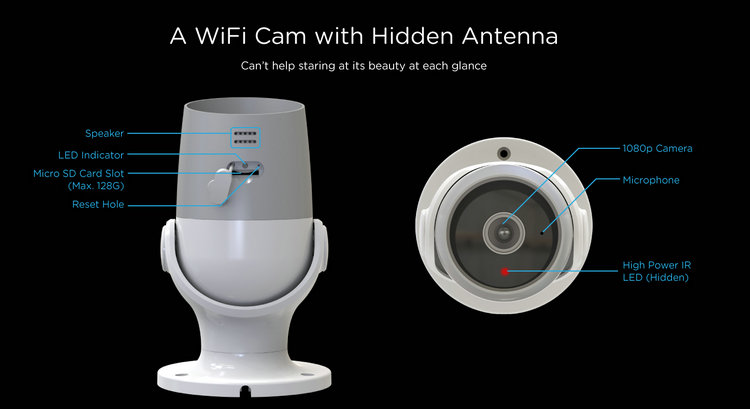

| Features | - Unique design, good appearance - Small size, WiFi antenna built-in, 2-way audio - Easy to install and adjust - TF-card Storage, Cloud Storage, Onvif Supported - App for Iphone/Ipad/andriod |
| Specification | |
| Sensor Type | 1/3" CMOS |
| Pixel | 2.0 Mega Pixels |
| Min illuminance | Color 0.01 Lux @ F1.2; Black and White 0.001 Lux @ F1.2 |
| Lens | 4.0mm F2.0 |
| Shutter | 1/25~1/100,000 per second |
| IR | High power LED ×1, with ICR |
| IR distance | 10m |
| WDR | Digtal WDR |
| Video compression | H.264 |
| Bit rate | 32Kbps~2Mbps |
| Max picture size | 1920*1080 |
| Frame Rate | 1~25 per second |
| Image setting | Support HD/SD；support mirror； |
| Audio | Two-way audio |
| Storage | Support SD card(Max 128G)、Cloud storage |
| Communication protocol | HTTP,DHCP,DNS, Onvif |
| Wifi standard | IEEE802.11b/g/n |
| Frequency | 2.4 GHz ~ 2.4835 GHz |
| channel bandwidth | Support 20/40MHz |
| Wifi security | WPA-PSK/WPA2-PSK |
| Data security | AES128 |
| Intelligence | Support motion detection, GEO fence |
| Reset | Support |

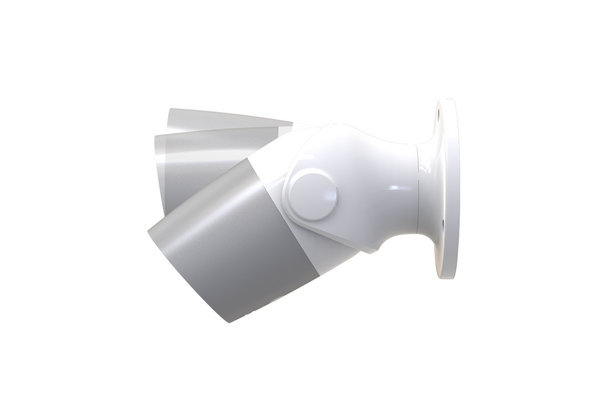

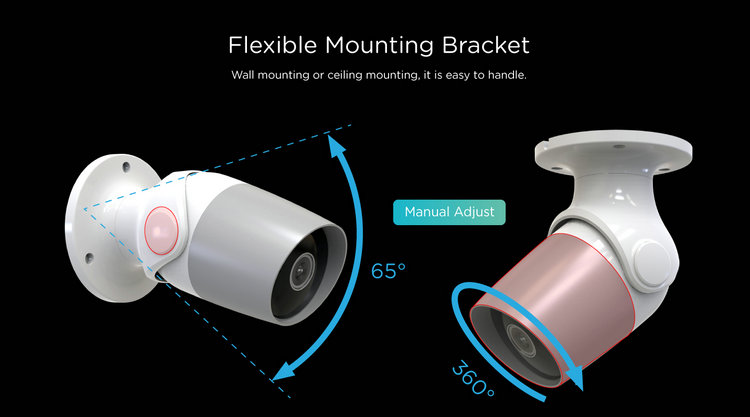

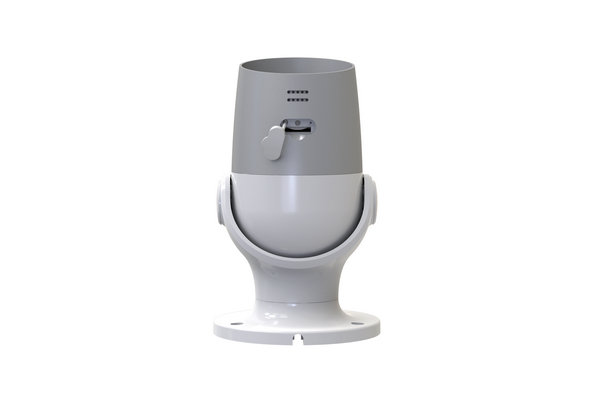

| Braket | 2-Axis Adjustable. Tilt range: 0°~65°；Rotate range: 360° |
| Working temperature | -20℃~55℃ |
| Power | DC12V, 1A |
| Consumption | 4.5W MAX |

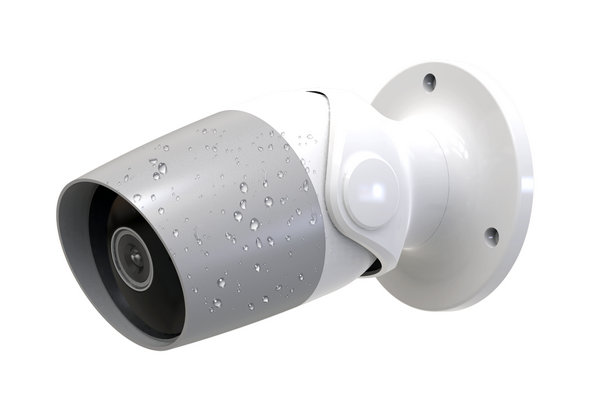

| Water proof | IP65 |
| Size(mm) | Φ70×133 |
| N. Weight(g) | 151.9g |
