Description:
Home HD wireless intelligent network camera is suitable for home, office, shop, bank, factory, school monitoring HD PTZ network camera. With its low latency, narrow bandwidth requirements, excellent quality, smooth graphics, multi-functional super stability, and powerful mobile phone viewing functions, the products are highly regarded by the market. The high-definition CMOS sensor provides high-quality images and comes with night vision. It has full-scale rotation function of PTZ (about 355 degrees, 90 degrees up and down), two-way voice monitoring, built-in IR-Cut function, and supports 128G external TF card to meet various customer needs.
Features:
APP:XMeye /iCSEE
1.IE browsing Chinese and English switching, CMS multi-window management software, automatic search equipment, remote monitoring, friendly software interface, simple operation
2.HD 2.0MP ,CMOS sensor
3.P2P technology , plug and play : no any settings
4.Standard H.264+ compression,Support Dual-stream，Main stream:1080P(1920*1080)、 sub-stream:D1(704*480)
5.IR distance 20 meters,4 pcs array lights
6.Support Android /iOS system mobile devices, remote real-time monitoring(1080P HD images)
7.Support two-way voice intercom, easy dialogue
8.Support Pan and Tilt (level: 355° & vertical: 90 °)
9.It can realize alarm photo and alarm video storage, and support local 128G TF card storage.
10.Support motion detection, external alarm input and output, alarm trigger client software capture and video recording, E-mail email alarm, FTP upload video, push alarm information to mobile client.
Parameters：
| Model | IPC-PTA1-1080P | ||||||
| system | P2P | support | |||||
| DDNS | support | ||||||
| Phone | Support Iphone、Android、windows、iOS | ||||||
| CMS | Support Windows，64CH viewing | ||||||
| MicroSD | Support alarm video recording, full-day video recording. | ||||||
| Network | Protocols | HTTP，UDP，SMTP，FTP，DHCP，DNS，NTP，UPnP | |||||
| Wired network | RJ45 10/100MB Adaptive Ethernet interface | ||||||
| WiFi | WIFI（IEEE 802.11b/g/n）2.4GHz | ||||||
| Wireless rate | 150Mbps(Max) | ||||||
| Maximum number of online users | Support 5 users online at the same time | ||||||
| stream | Support Dual-stream | ||||||
| lens | Lens type | HD glass lens | |||||
| Image Sensor | 1/2.7寸 CMOS Sensor | ||||||
| Image | 1920×1080（2.0MP） | ||||||
| HD Lens | 3.6mm | ||||||
| Viewing angle | 65° | ||||||
| IR-CUT | support | ||||||
| video | Video compression format | H.264+ | |||||
| Image frame rate | 1~25fps | ||||||
| Image resolution | Main stream:1080P(1920*1080)、 sub-stream:D1(704*480) | ||||||
| Image adjustment | Brightness, Contrast, Saturation, Sharpness | ||||||
| Minimum illumination | 0.4 LUX | ||||||
| Signal to noise ratio | >48dB | ||||||
| Audio | Audio compression format | G.726/G.711 | |||||
| Built-in microphone | support | ||||||
| speaker | support | ||||||
| PTZ | pan & tilt | Level: 355° & vertical: 90° | |||||
| IR | IR_CUT | Support | |||||
| Alarm | Alarm Detection | Motion detection Snapshot, audio/video record | |||||
| Alarm linkage | Support snapshot, audio / video | ||||||
| Alarm notification | Real-time App push notifications | ||||||
| characteristic | Material | plastic（ABS） | |||||

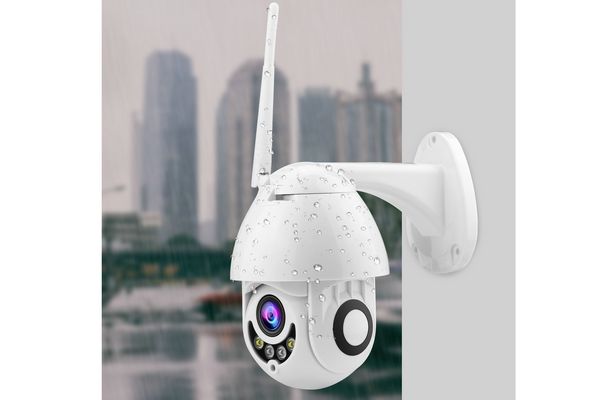

| Use environment | Indoor and outdoor | ||||||
| power | DC12V/ 2A | ||||||
| Work temperature | below zero 20°C～+50°C | ||||||
| Work humidity | 10%～80% | ||||||

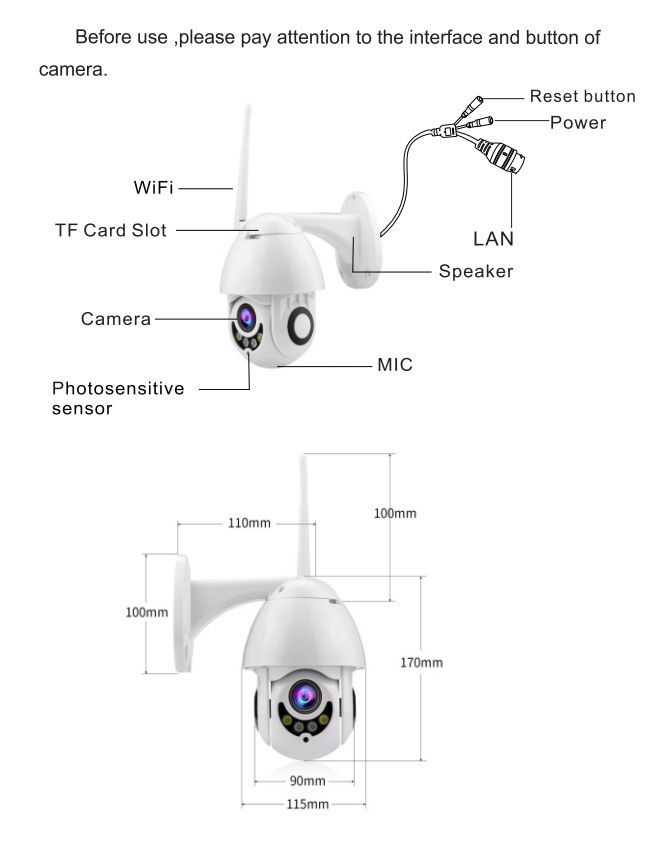

| Box size | 201*201*120 | ||||||

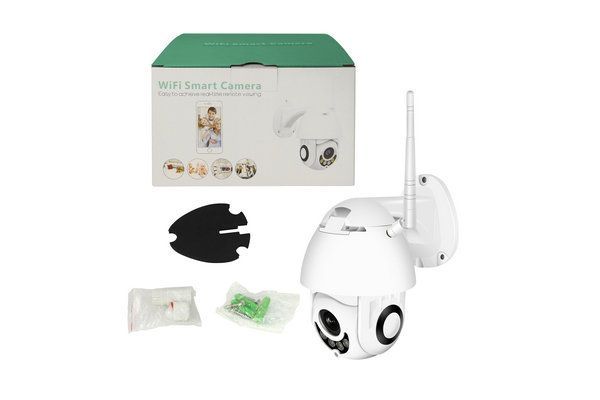

| Others | Instructions, mounting brackets, mounting screws | ||||||
| Operating environment | Centralized monitoring of computer systems | Microsoft XP,Vista，Win7,Win8 | |||||
| IE | Internet Explorer6.0,7.0,8.0,9.0,10、Firefox, Google, Safari, etc. | ||||||
