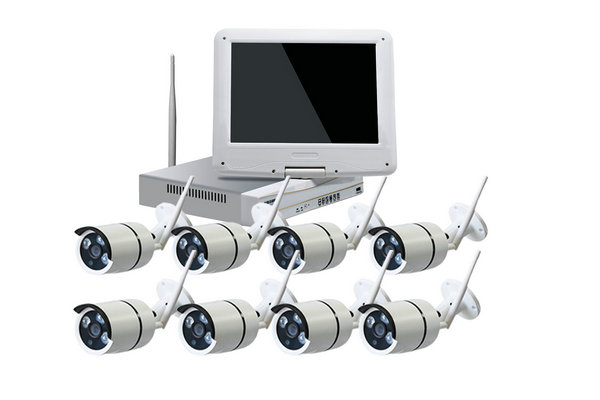

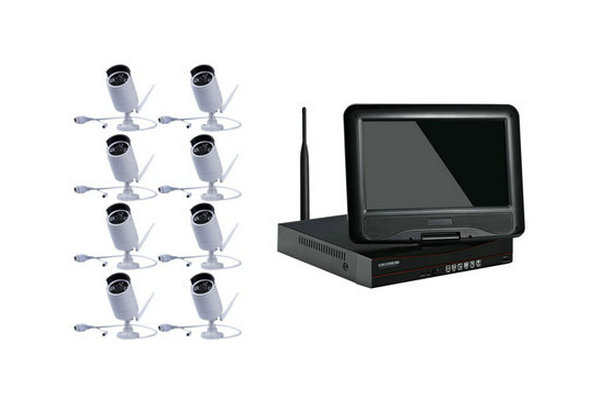

IPC-8Kit910M 8CH Wireless 10 inch monitor NVR kit

 Tip: Click on the image to enlarge


  * 1080P/960P/720PWireless Network Video Recorder

  * Built-in WIFI module with high-performance and high stability

  * Automatically Connection between NVR and IPC

  * Support video preview/recording/playback/backup

  * Support the mixed use of wireless and wire,support different scene

  * Support Android/IOS/PC remote

  * HD video output, up to 30m transmitting with 3 walls

  * Automatic connection with IP camera, save installation cost

  * Plug and play, P2P service

  * Mobile viewing, iphone&android app

  * H.264 Dual stream encoding

  * 3.6mm HD lens;IR view distance: 30m(3pcs Dot IR LEDIR)

  * Support Multi-Screen software and CMS

  * Waterproof: IP66

  * Meet with IEEE 802.11b/g/n wireless standard, WEP & WPA

Model IPC-8Kit910M-Wifi-1.0MP IPC-8Kit910M-Wifi-1.3MP IPC-8Kit910M-Wifi-2.0MP
IPC Specification
Sensor 1/4 inch 1.0 Megapixel OV CMOS sensor HI3518E+OV9712 1/3 inch 1.3 Megapixel Aptina Sensor HI3518C+AR0130 1/2.8inch 2.0 Megapixel Sony Sensor HI3516C+IMX 322
Max.image Resolution 1280*720 1280*960 1920*1080
Frame Rate 30fps@720P 30fps@960P 30fps@1080P
Signal System PAL/NTSC
Minimum illumination Color: 0.1 Lux; B/W: 0.01 Lux
Shutter 1/25s to 1/25,000s
Lens 4mm HD Lens
IR Distance 30m
OSD Date Time & Title
White Balance Auto
Day&Night Auto / Color / BW
3D-DNR Auto
Mirror/Flip On / Off
S/N > 39.1 Db
Interface RJ45 / WIFI 802.11b/g/n
General Specification Anti-thunder Level Standard IEC61000-4-5
Working Temperature/Humidity -10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity -20℃ to +60℃ / 20% to 90% RH
Power Input DC12V-1A
Power consumption ≤6W
Size 205(L)×70(W)×55 (H)mm
Weight 500g
Level of Protection IP66
Network Video Recorder
AV(audio/video)input Operating System Embedded Linux OS
Network Video 8CH
Network video input 40Mbps
Audio Bitrate 64Kbps
AV (audio/video) output HDMI input 1ch,resolution:1024x768,1366x768,
AV CODEC Specification Video Resolution D1/720P/960P
synch-playback 8CH
Video Control Video/Capture mode Manual、Time、Motion、Alarm
Playback mode Real time、Routine、Event
Backup USB backup
Hard Disk Type 1*SATA interface
Max Capacity 4 TB at most for each
External Interface Network Interface 1 adaptable RJ45 10M/100M, 1 WIFI interface
USB Interface 2 USB 2.0
Network Control Protocol UPnP (play&plug)/SMTP (email survice)/
PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc…
Others Power Supply DC12V3A
Power Consumption (W) ≤5W(Without HDD)
Operate Temperature (°C) -10℃~+55℃
Working Humidity (%) RH 10%~90%
Screen size 10.1 inch (1024x768)
Display angle adjusted degree 270 ° flexible adjust
Weight(excluding HDD) ≤9Kg
