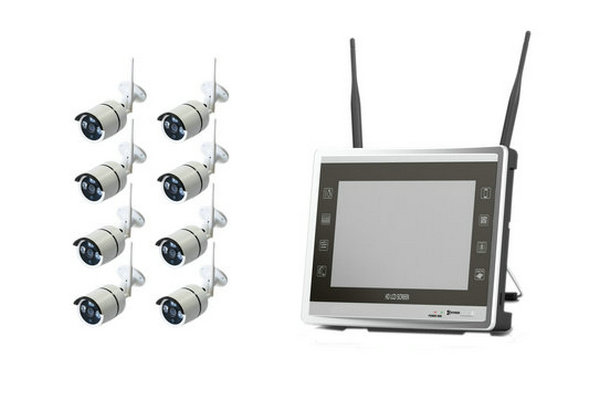

IPC-8Kit911M 8CH Wireless 11 inch monitor NVR kit

 Tip: Click on the image to enlarge

  Features:

  * 1080P/960P/720PWireless Network Video Recorder

  * Built-in WIFI module with high-performance and high stability

  * Automatically Connection between NVR and IPC

  * Support video preview/recording/playback/backup

  * Support the mixed use of wireless and wire,support different scene

  * Support Android/IOS/PC remote

  * HD video output, up to 30m transmitting with 3 walls

  * Automatic connection with IP camera, save installation cost

  * Plug and play, P2P service

  * Mobile viewing, iphone&android app

  * H.264 Dual stream encoding

  * 3.6mm HD lens;IR view distance: 30m(3pcs Dot IR LEDIR)

  * Support Multi-Screen software and CMS

  * Waterproof: IP66

  * Meet with IEEE 802.11b/g/n wireless standard, WEP & WPA

Model IPC-8Kit911M-Wifi-1.0MP IPC-8Kit911M-Wifi-1.3MP IPC-8Kit911M-Wifi-2.0MP
Operating system Embedded LINUX OS
IPC Specification
Sensor 1/4 inch 1.0 Megapixel OV CMOS sensor HI3518E+OV9712 1/3 inch 1.3 Megapixel Aptina Sensor HI3518C+AR0130 1/2.8inch 2.0 Megapixel Sony Sensor HI3516C+IMX 322
Max.image Resolution 1280*720 1280*960 1920*1080
Frame Rate 30fps@720P 30fps@960P 30fps@1080P
Signal System PAL/NTSC
Minimum illumination Color: 0.1 Lux; B/W: 0.01 Lux
Shutter 1/25s to 1/25,000s
Lens 4mm HD Lens
IR LED 3pcs Dot IR LEDIR
IR Distance 30m
OSD Date Time & Title
White Balance Auto
Day&Night Auto / Color / BW
3D-DNR Auto
Mirror/Flip On / Off
S/N > 39.1 Db
Interface RJ45 / WIFI 802.11b/g/n
General Specification Anti-thunder Level Standard IEC61000-4-5
Working Temperature/Humidity -10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity -20℃ to +60℃ / 20% to 90% RH
Power Input DC12V-1A
Power consumption ≤6W
Size 205(L)×70(W)×55 (H)mm
Weight 500g
Level of Protection IP66
Network Video Recorder
LCD Built in 10inch LCD screen
AV input Network Video 8CH
Network video input 40Mbps
AUdio Bitrate 64Kbps
AV output HDMI input 1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
AV CODEC Specification Video Resolution D1/720P/960P
synch-playback 8CH
Video Control Video/Capture mode Manual、Time、Motion、Alarm
Playback mode Real time、Routine、Event
Backup USB backup
Hard Disk Type 1*SATA interface
Max Capacity 4 TB at most for each
External Interface Network Interface 1 adaptable RJ45 10M/100M, 1 WIFI interface
USB Interface 2 USB 2.0
Network Control Protocol UPnP (play&plug)/SMTP (email survice)/
PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc…
Others Power Supply DC12V3A
Power Consumption (W) ≤5W(Without HDD)
Operate Temperature (°C) -10℃~+55℃
Working Humidity (%) RH 10%~90%
Screen size 11 inch (1024x768)
Display angle adjusted degree 270 ° flexible adjust
Weight(excluding HDD) ≤9Kg
