| Resolution | 3 MegaPixel | |||
| Image format | 1/2.7" 1/3" | |||
| Focal length | 5.0-50mm | |||
| Aperture | F1.4 | |||
| Mount | CS | |||
| Field Angle | 1/2.7" | D: | H:56.4°~6.42° | V: |
| 1/3" | D: | H:45°-5.5° | V: | |
| M.O.D. | 0.3M | |||
| Distortion(TV) | <5.1% | |||

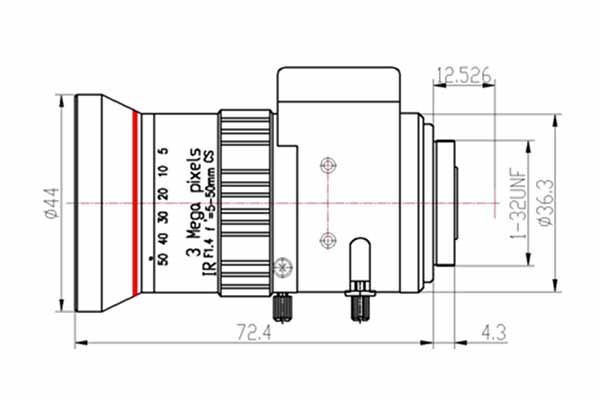

| Dimension | φ44×L77.8mm | |||
| BFL | 12.53mm | |||
| TTL | 85.83mm | |||
| Operation | Focus | Manual | ||
| Zoom | Manual | |||
| Iris | Auto | |||
| Lens Material | Metal + Optical Glass | |||
| Weight | 200G | |||
| (Operating Temperature) | .-20℃~+80℃ | |||
