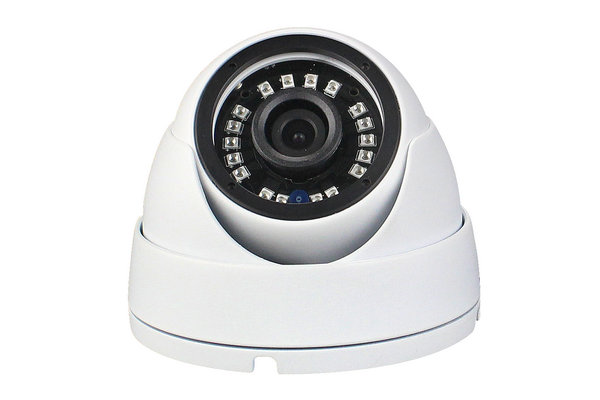

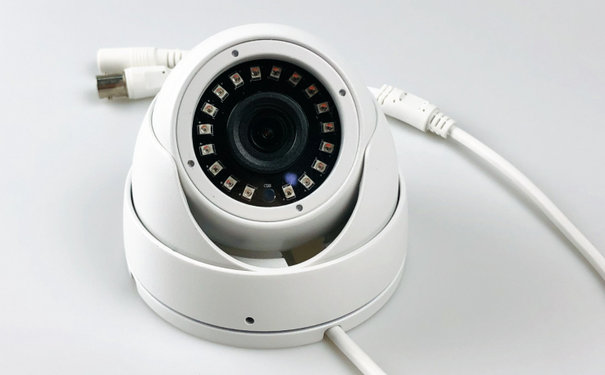

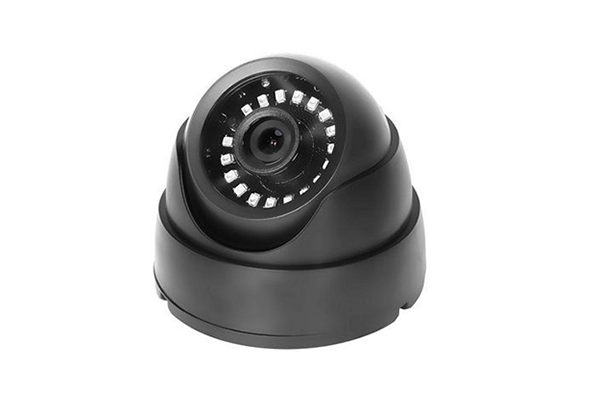

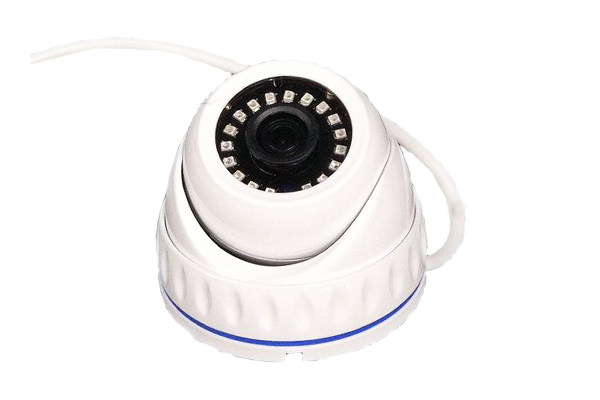

JYD-6096HY Fixed lens Dome AHD Camera

 Tip: Click on the image to enlarge
Model No. JYD-6096HY-2.0MP JYD-6096HY-4.0MP JYD-6096HY-5.0MP
Camera Type AHD (Analog High Definition)Camera
Effective Pixels 2.0 Mega Pixels 4.0 Mega Pixels 5.0 Mega Pixels
Image Sensor 1/2.8" SONY CMOS Sensor,OSD,ICR 1/3" OV CMOS Sensor,OSD,ICR 1/3" OV CMOS Sensor,OSD,ICR
DSP Nextchip 2441H Nextchip 2475H Nextchip 2475H
Min. Illumination Color 0.001Lux@F1.2 Color 0.001Lux@F1.2 Color 0.001Lux@F1.2
B/W 0.0001 Lux@F1.2 B/W 0.0001 Lux@F1.2 B/W 0.0001 Lux@F1.2
On Screen Display Yes Yes Yes
OSD Function
Manual/DC Lens,Shutter/AGC/WB,Pict Adjust,Mirror,Day/Night,DNR,BLC/HLC,Motion Detect,Privacy Zone
IR Cut Filter
IR LED synchronous switching double filter
Lens Mount
Board lens 3.6mm
Infrared Luminary
24 pieces F5 IR-LEDs
Infrared Wavelength
850 nm
Illuminate Distance
Waterproof Criterion
I/O Connector
1*DC Power Connector ,1* BNC Video Connector
Supplied Voltage
Power Consumption
IR On: 600mA max., IR Off: Less than 200mA
Working Enviroment
-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
