Features:
1) Dual stream encoding (H.264/MJPEG)
2)include 2.8mm/3.6mm/6mm/8mm fixed lens(3MP)
3)IR view distance :50m with 2pcs Super power IR array leds
4) Support Multi-Screen software and CMS
5) Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
6)Plastic material,Size:131mm×95mm(dia.)
7)Pan: 360°/s Tilt:90°/s
8)64 presets,4 cruises,2 point scan,home position,power cut off memory.
9)Audio Input/Output
10)TF card memory
11)Support Wifi
1) Dual stream encoding (H.264/MJPEG)
2)include 2.8mm/3.6mm/6mm/8mm fixed lens(3MP)
3)IR view distance :50m with 2pcs Super power IR array leds
4) Support Multi-Screen software and CMS
5) Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
6)Plastic material,Size:131mm×95mm(dia.)
7)Pan: 360°/s Tilt:90°/s
8)64 presets,4 cruises,2 point scan,home position,power cut off memory.
9)Audio Input/Output
10)TF card memory
11)Support Wifi
| Model | IPC-1009DPTZ-1.0MP | IPC-1009DPTZ-1.3MP | IPC-1009DPTZ-2.0MP | |
| Camera | Image Sensor | 1/4" Progressive Scan CMOS | 1/3" Progressive Scan CMOS | 1/2.8" Progressive Scan SONY CMOS |
| Signal System | PAL/NTSC | |||
| Scanning System | Progressive Scan | |||
| Min. Illumination | Color:0.2 lux, W/B:0.05 lux, (IR on)0 lux | Color: 0.2 lux、W/B: 0.02 lux、(IR on)0 lux | Color: 0.2 lux, W/B: 0.02 lux, (IR on)0 lux | |
| Focal Lens | 3 megapixel 3.6/6/8mm fixed lens | |||
| Day/Night | Auto(ICR) / Color / B/W | |||
| Electric shutter | Auto/Manual（adjustable，1/25--1/4000s） | |||
| White Balance | auto/manual | |||
| Noise Reduction | 3D digital noise reduction | |||
| IR LED | 2pcs Array IR LED+Finland LEDIL Lens | |||
| Effective night vision | 50m | |||
| Compression | Video compression | H.264 | ||
| Video bit rate | 128Kbps--8Mbps；CBR/VBR可调 | |||
| Audio compression | G.711/G.726 | |||
| Audio bit rate | 64Kbps(G.711) / 16Kbps(G.726) | |||
| Video output | Max. Image size | 1280×800 | 1296×976 | 1984×1225 |
| Frame rate | 1920×1080@30fps，1280×960@30fps，1280×720@30fps，704×576@25fps，640×360@25fp，352*288@25fps | |||
| Image adjustment | DWDR、Saturation、Brightness、Contrast Ratio、Sharpness adjustable by IE | |||
| Image mirror | Horizon/Vertical | |||
| Scene | auto/indoor/outdoor | |||
| Digital zoom | acheived by NVR | |||
| PTZ Controll | Rotation | Pan: 360°, 30°/ s; Tilt:90°, 20°/s； | ||
| Preset positions | 64 accurate preset position | |||
| Track Routes | 4 track routes,stay time adjustable | |||
| Scan | Two points scan, auto scan, rotating speed adjustable | |||
| Others | Power off memory | |||
| Functions | Storage | TF card memory support | ||
| Interface protocol | ONVIF | |||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, | |||
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP,SRTP可选) | ||||
| Alarm | PIR hunman body detaction, motion detection, keep out alarm, cable alarm,IP address conflict,Memory full,Memory wrong | |||
| Audio | Two way voice intercom，inside microphone | |||
| POE | support | |||
| WIFI | support | |||

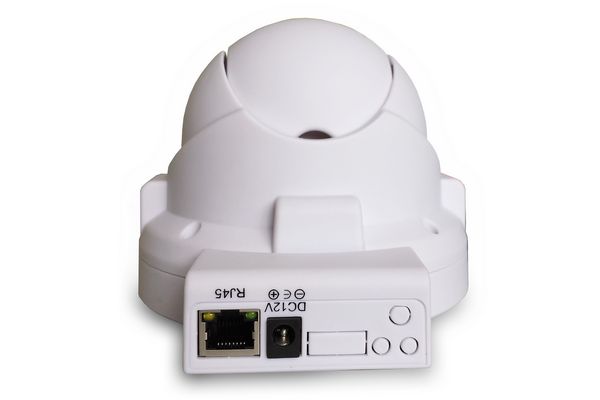

| Interface | Communication | 1 RJ45 10M / 100M ethernet port | ||
| Basic | Voltage Input | DC 12V±10% / PoE | ||
| Power consumption | 4.8W(IR off) / 10W(IR on) | |||
| Working condition | -35℃――55℃,humidity 90%RH | |||
| Installation | Wall mounting, Celling mounting | |||
| Size | (D)131mm×(H)112mm | |||
