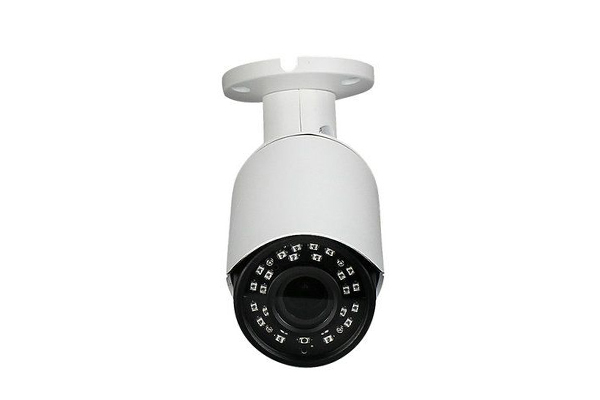

JYR-5771IPC Auto Focus Lens IP camera

　　Features:
　　>Varifocal 2.8-12mm
　　> H.264 & MJPEG dual-stream encoding
　　> Max 25/30fps@1080P(1920×1080)
　　> Day/Night(ICR), 3DNR, AWB, AGC, BLC
　　> Multiple network monitoring: Web viewer, CMS

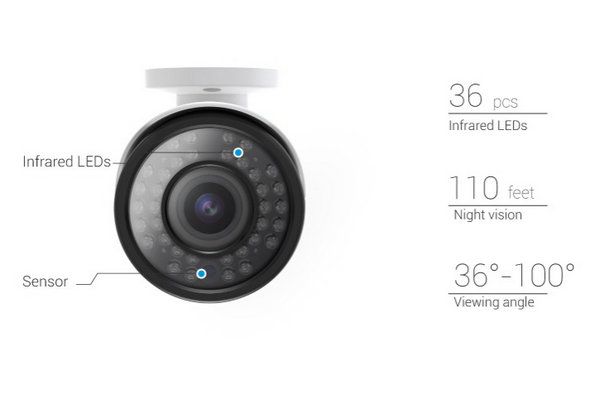

　　>IR LED: 36pcs  IR LED IR Range:30m
　　>IP66
　　>POE Audio option
　　Support more than 20 languages Mobile Phone View
　　Support P2P Function/DDNS Motion Detection
　　Free CMS,Support ONVIF/RTSP

Model		JYR-5771IPC-1.0MP	JYR-5771IPC-1.3MP	JYR-5771IPC-2.0MP
IP Camera
Image Sensor		1/4" OV CMOS sensor with IR Cut filter	1/4" OV CMOS sensor with IR Cut filter	1/2.8" SONY CMOS sensor with IR Cut filter
Effective Pixels		1280(H)x720(V)	1280(H)x960(V)	1920(H)x1080(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/3~1/10000s
Min. Illumination		Color: 0. 1Lux, B/W: 0.05Lux;
S/N Ratio		>50dB
Camera Features
Max. IR LEDs Length		IR LED: 36pcs IR LED IR Range:30m
Day/Night		Auto(ICR) / Color / B/W
Backlight Compensation		BLC
White Balance		Auto
Gain Control		Auto/Manual
Noise Reduction		3D
TF Card		Support
Lens
Focal Length		Varifocal 2.8-12mm
Max Aperture		F1.6
Angle of View		89.9°-26.2°
Video
Compression		H.264 / MJPEG
Frame Rate	Main Stream	2.0MP HD 1080p (1920*1080) 25fps (PAL) 30fps(NTSC)
	Sub Stream	D1 704*576 25FPS / CIF 25FPS
Bit Rate		100-8192Kbps,Supports CBR/VBR
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , NTP , PPPOE , SMTP , UPNP
ONVIF		ONVIF Ver. 2.0
Max. User Access		10 users
Smart Phone		iPhone, iPad, Android
General
Power Supply		DC12V, PoE (option)
Power Consumption		<6W
Working Environment		-10°C~+60°C, 10%~90%
Ingress Protection		IP66
Approvals		CE FCC RoHS
