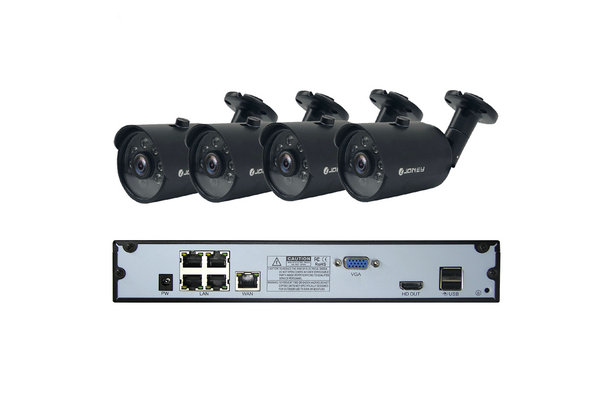

IPC-Kit9712-POE 4CH H.264/H.265 POE NVR kit

 Tip: Click on the image to enlarge


  Support H.264/H.265 video compression;

  HDMI/VGA Simultaneous Video Output;


  Support ONVIF Protocol;

  Support WEB,VMS,MYEYE Platform;

  Support Mobile Phone Monitoring(IOS ,Android);

  Cloud Services,P2P,Alarm Information Push To Phone;

  Support Multi-Language;

Model PoE ip camera 4CH PoE-NVR
Image Sensor 720P/1080P/3MP/4MP/5MP optional Video Compression H.264/H.265
Lens 3.6/6mm Input/Record 2MP/3MP/4MP/5MP
Min. illumination Color: 0.1Lux@F1.2 Playback 1CH*2MP/4MP/5MP
  B/W: 0.01Lux@F1.2 Display 1HDMI,1VGA
Day/Night IR CUT Audio In/Out --
WDR DWDR Alarm In/Out --
Max.IR Distance 20-30m POE agreement IEE802.3af and IEEE802.3at self-adaptation
Video Compression H.264/H.264+/H.265 Network interface 1*RJ45 10M/100M Adaptive Ethernet port ,4 POE ports Support POE power supply
Frames 25fps/PAL,30fps/NTSC Operator interface 16-bit true color graphic menu operation interface, support mouse operation
Multi-streaming Dual-stream
IR LED 18pcs SMD LED PTZ control Control PTZ device by network
Compatibility ONVIF ONVIF Support
Audio In/Out no(Optional) USB 2*USB2.0
Memory Slot no Temperature 0 ℃~+55 ℃
Alarm In/Out no Humidity 10%-90%RH
Working Temperature -20℃~65℃ Consumption <15W(Without HDD)
Power DC48V Dimension 255*210*42mm
Power DC48V
