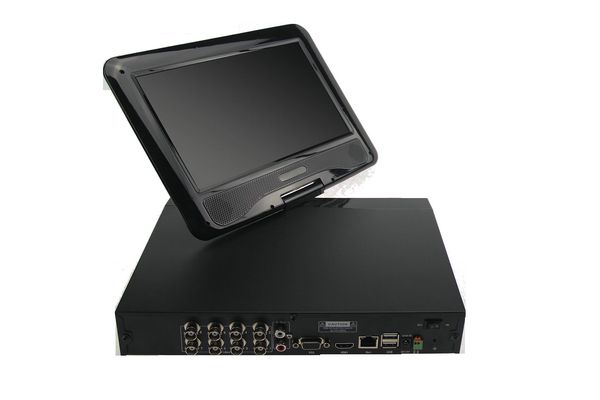

DVR6104(6108)M-HVR 4/8CH 5 IN 1 dvr with 10 inch monitor

 Tip: Click on the image to enlarge
Model DVR6104M-HVR DVR6108M-HVR
Video Compression Format H.264
Video System NTSC / PAL
GUI OSD YES
Video Input 4CH BNC input(AHD/CVI/TVI/CVBS/IP input) 8CH BNC input(AHD/CVI/TVI/CVBS/IP input)
Video Output 1CH VGA/1CH HDMI/1CH BNC
Audio Input/Output 1CH audio input,1CH audio output(RCA)
Image Quality Setting Supper Best,Well,Good,Medium,Normal and Bad
Hard Disk Storage Support 1 SATA HDD(each max6TB)
Alarm Input/Output NO 4 input 1output
Multiplex Operation Live display/record/playback/backup/network transmit
Hybrid mode 4*1080N,4CH 720P@30fps. 8*1080N,8CH 720P@30fps.
Analog mode: 4*1080N/ 4*720P/4*AHDL Analog mode: 8*1080N/ 8*720P/8*AHDL
Digital mode: 4*1080P/4*720P Digital mode: 2*1080P/4*720P
Hybrid mode: 2*720P+2*720P Hybrid mode: 4*720P+4*720P
Recording Mode Manual/Timer/Motion/Alarm
Playback Mode Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
Backup Device USB flash drive,USB hard disk and network backup
Pre-alarm Recording Recording for 10 seconds before alarming
Network Protocol TCP/IP、PPPOE 、DDNS and NTP
Ethernet remote view Support remote surveillance up to 10 users simultaneously
CMS software YES
Mobilephone View YES
Electronic zoom YES
VGA Interface YES
Log record function YES
Image Tour YES
IR Remote control YES
Video Loss Detection YES
Video Adjustable Hue /Saturation /Contrast /Brightness adjust
PTZ Control YES
USB Mouse YES
Power Source 12V/3A
Key Lock(Password Protection) YES
Power-down recovery function YES
