NVR-2008/2016/2032 8/16/32CH 2HDD H.264 NVR

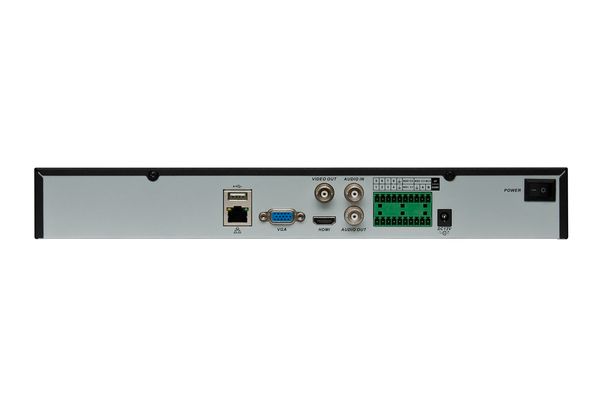

 Tip: Click on the image to enlarge
Model NVR2008 NVR2016 NVR3032
Chipset Hi3535
OS Embedded Linux
Video&Audio input Bidirectional Talk 1CH,BNC(Line in,2Vpp,1Kohms)
Incoming bandwidth 96Mbps 128Mbps 200Mbps
Outgoing bandwidth 64Mbps 64Mbps 160Mbps
IPC Input 8CH 16CH 32CH
Video&Audio output CVBS 1CH,BNC(1.0Vp-p,75ohms)
VGA 1CH,1920×1080,1280×1024,1280×720,1024×768
HDMI Standard 1.3a
Audio Output 1CH,BNC(Line out,2Vp-p,300ohms)
Video&Audio encoding Audio Compression G.711A
Audio Bit Rate 64Kbps
Video&Audio decoding IP channel Resolution Main stream:Up to 2560x1920
Auxiliary stream:D1
Video decoding MPEG-4/H.264(Up to High Profile@Level4.2)
Audio decoding G.711A/G.726
Synchronous Playback Up to 8CH Up to 16CH Up to 16CH
Decoding Ability 8CH 720P@30FPS or 6CH 1080P@30FPS 13CH 720P@30FPS or 6CH 1080P@30FPS
Intelligent Analysis 1CH Face detection or 2CH Perimeter detection N/A
Up to 1080P
Other Function Bidirectional Talk Two-way voice intercom function
Motion Detection Zones: 396(22*18),Sensitivity: 1~6 (level 6 is highest)
Picture Capture Support JPEG Capture
HDD Interface SATA 2 SATA Interfaces
Max Capacity Unlimited
External Interface Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB 2 USB2.0 Interfaces
Alarm Input 8CH
Open/Closed Relay
Alarm Output 3CH
RS-485 1 RS-485 interface
Structure Dimensions 405*335*120mm
Front Panel LED
Size 1U,360*262*48mm
Weight 2.3Kg(without HDD)
Installation Desktop Installation
General Power Supply DC +12V 3.3A
Working Temperature -10℃--+55℃
Working Humidity 10%--90%
Consumption 10W(without HDD)
