JY-SP330W PTZ WIFI Camera Specification

 Tip: Click on the image to enlarge

  *Quick awake.Quick dormant

  *1/2.7'' image Sensor, Colorful image processor

  *Inside battery

  *1080p resolution

  *Supper-Low Comsuption, Super-standy by time

  *Two-way speak

  *PIR Alarm Function

  *Support cloud& Local Storage

  *APP ISO&Android

  *Metal casing, IP65

Main Chipset HI3518Ev300
Sensor 1/2.7″ Image Sensor GC2063
Compression Mode H.264+/H.265
Video Stream 1920*1080/20fps
Internet WIFI
Alarm Mode Mode PIR
Distance 0 - 12meters
Angle 120°
Method Pushing Alarm Info. to smartphone
PTZ Angle Horizontal: 320° , Vertical: 90°
Rotate Speed Horizontal: 55°/s , Vertical: 40°/s
Day&Night Full-colorful 0.00001LUX
IR Distance 20meters
Day distance 20meters
Audio Built-in Speaker 8Ω2W
Micphone range 10m
Lens Lens 3.6mm
Angle 120°
Storage Cloud Alarm Video
Phone APP UBOX,ios10.0,android5.0 Version Above
Local TF Card (Max 64G)

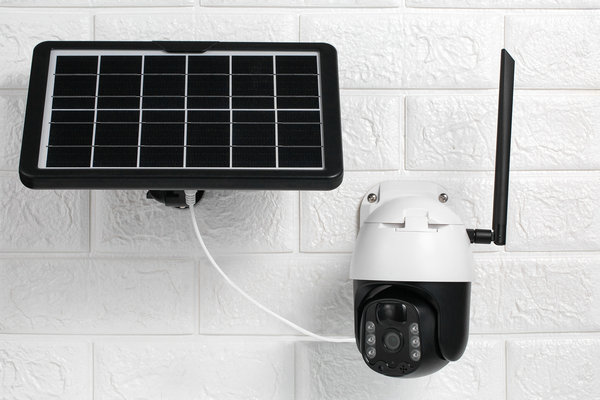

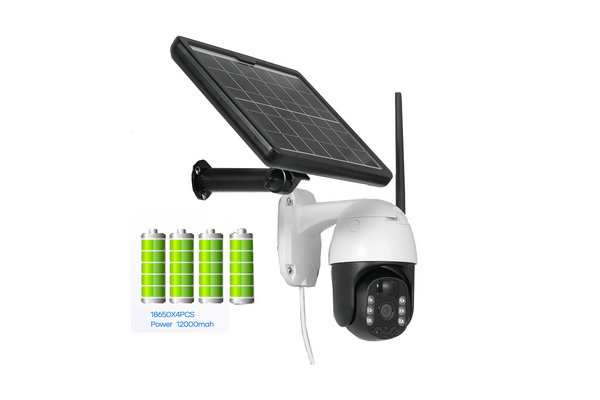

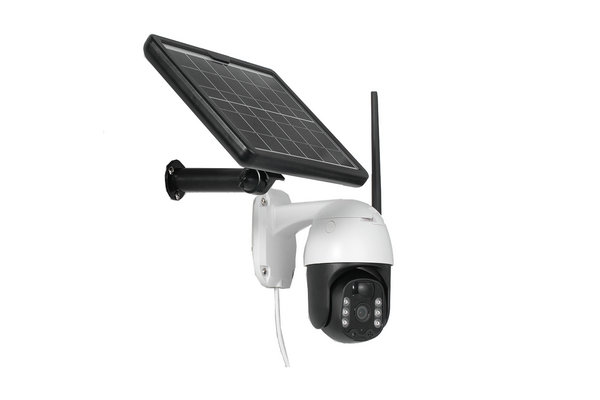

Power Mode Solar Panel+ 18650 Battery
Solar Power 5W
Battery Volume Max 18650 * 4pcs
Max Working Power 4W
Stand-by Power 0.003W
Others Working Environment Outside/Inside
Working Temperature -30℃~+60℃
Working Humidity ≤90%RH
Packing Size : 300*210*175MM
Weight: 1.84KG
Size of outer case: 12PCS
